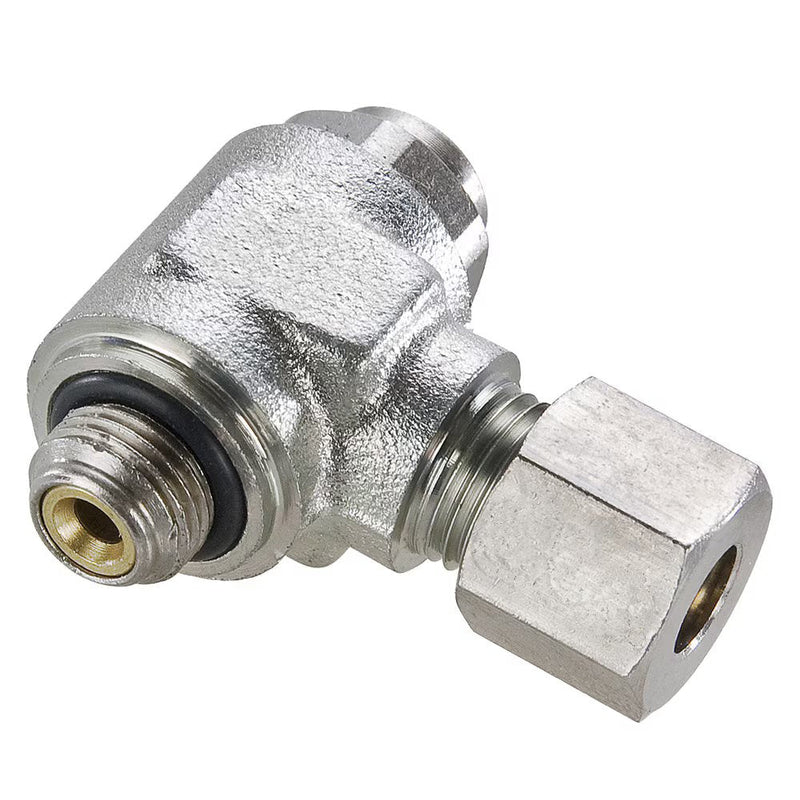

FCK701C-10M-6G by Parker | Knobless Compression Metal Flow Control | 10 mm Compression x 3/8" Male BSPP Thread | 20 mm Height | 90° Elbow | Nickel Plated Brass

FCK701C-10M-6G by Parker | Knobless Compression Metal Flow Control | 10 mm Compression x 3/8" Male BSPP Thread | 20 mm Height | 90° Elbow | Nickel Plated Brass

Save $38.07 Save $38.07
$95.18
$95.18 - $95.18
$95.18
$57.11
$57.11 - $57.11
$57.11

by Parker Hannifin
Metal Flow Controls:FCK701C Knobless Compression Metal Flow Control - BSPP
Specifications for Variant SKU: FCK701C-10M-6G Parker
Series: FCK701C Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Petrochemical, Valved, Flow Control
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Electroless-nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
Markets:
  • Factory/Process Automation
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: -4° to +158° F (-20° to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size BSPP Hex 1 Hex 2 H L L1
FCK701C-4M-2G 4 mm 1/8" 13 mm 10 mm 26.0 mm 25.5 mm 14.5 mm
FCK701C-6M-2G 6 mm 1/8" 13 mm 13 mm 26.0 mm 25.5 mm 14.5 mm
FCK701C-8M-2G 8 mm 1/8" 13 mm 14 mm 26.0 mm 29.5 mm 15.5 mm
FCK701C-8M-4G 8 mm 1/4" 17 mm 14 mm 31.5 mm 31.0 mm 17.0 mm
FCK701C-10M-4G 10 mm 1/4" 17 mm 19 mm 31.5 mm 35.0 mm 19.0 mm
FCK701C-10M-6G 10 mm 3/8" 20 mm 19 mm 44.5 mm 37.5 mm 19.0 mm
FCK701C-10M-8G 10 mm 1/2" 23 mm 19 mm 50.0 mm 37.5 mm 19.0 mm
FCK701C-12M-8G 12 mm 1/2" 23 mm 22 mm 50.0 mm 38.0 mm 21.5 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
