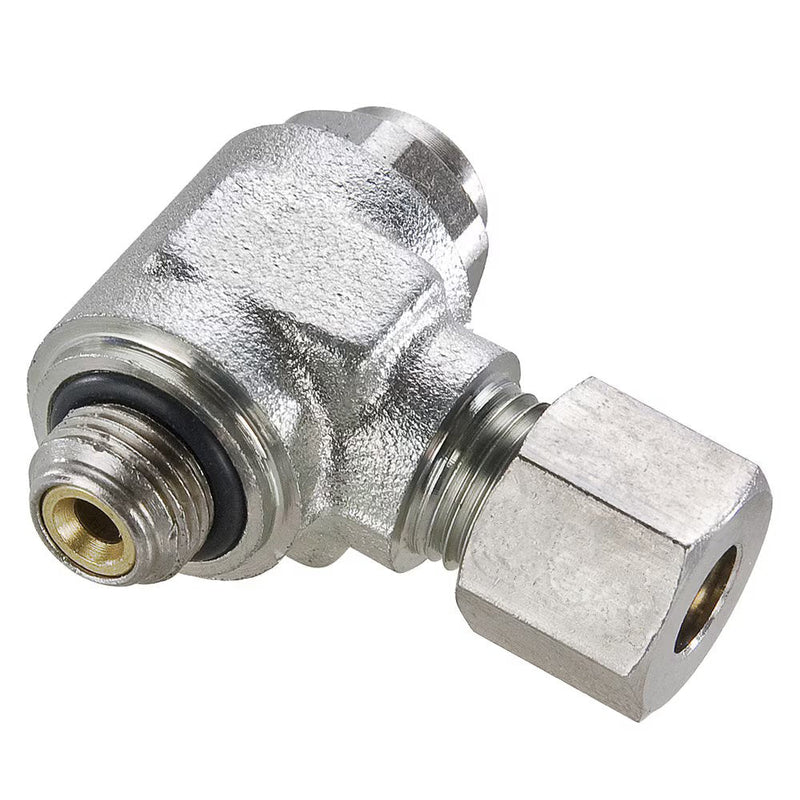

FCK701C-12M-8G by Parker | Knobless Compression Metal Flow Control | 12 mm Compression x 1/2" Male BSPP Thread | 23 mm Height | 90° Elbow | Nickel Plated Brass

FCK701C-12M-8G by Parker | Knobless Compression Metal Flow Control | 12 mm Compression x 1/2" Male BSPP Thread | 23 mm Height | 90° Elbow | Nickel Plated Brass

Save $44.72 Save $44.72
$111.80
$111.80 - $111.80
$111.80
$67.08
$67.08 - $67.08
$67.08

by Parker Hannifin
Metal Flow Controls:FCK701C Knobless Compression Metal Flow Control - BSPP
Specifications for Variant SKU: FCK701C-12M-8G Parker
Series: FCK701C Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Petrochemical, Valved, Flow Control
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Electroless-nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
Markets:
  • Factory/Process Automation
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: -4° to +158° F (-20° to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size BSPP Hex 1 Hex 2 H L L1
FCK701C-4M-2G 4 mm 1/8" 13 mm 10 mm 26.0 mm 25.5 mm 14.5 mm
FCK701C-6M-2G 6 mm 1/8" 13 mm 13 mm 26.0 mm 25.5 mm 14.5 mm
FCK701C-8M-2G 8 mm 1/8" 13 mm 14 mm 26.0 mm 29.5 mm 15.5 mm
FCK701C-8M-4G 8 mm 1/4" 17 mm 14 mm 31.5 mm 31.0 mm 17.0 mm
FCK701C-10M-4G 10 mm 1/4" 17 mm 19 mm 31.5 mm 35.0 mm 19.0 mm
FCK701C-10M-6G 10 mm 3/8" 20 mm 19 mm 44.5 mm 37.5 mm 19.0 mm
FCK701C-10M-8G 10 mm 1/2" 23 mm 19 mm 50.0 mm 37.5 mm 19.0 mm
FCK701C-12M-8G 12 mm 1/2" 23 mm 22 mm 50.0 mm 38.0 mm 21.5 mm
