FDA-4.0-100 by Texcel | CORNUCOPIA Series | All-Purpose Sanitary Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Red

FDA-4.0-100 by Texcel | CORNUCOPIA Series | All-Purpose Sanitary Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Red

$64.25 - $5,353.38
$64.25
$45.89
$45.89 - $3,823.84
$45.89

Texcel
CORNUCOPIA Series | All-Purpose Sanitary Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: FDA-4.0-100 Texcel | 100 |
Series: CORNUCOPIA Series
Hose Color(s): Red
Internal Diameter: 4in
Outer Diameter: 4.56in
Tubing Construction: EPDM
Cover Construction: EPDM
Food & Sanitary Hose

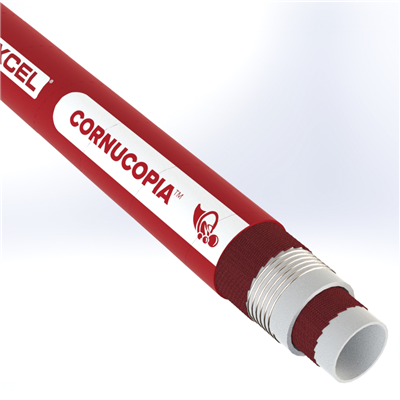

CORNUCOPIA™ All-Purpose Sanitary Hose

A multipurpose sanitary hose formulated for use with fatty foods, wine, beer, potable water and other related foodstuffs.

1

What is this hose used for?

The white, smooth EPDM tube ensures food quality, is odorless and does not alter taste. The UHMWPE outer cover dramatically increases abrasion resistance, is antimicrobial and offers increased dragability. The high working temperature allows for sterilization of the hose with steam at 230°F for 30 minutes.

  • Fatty foods
  • Wine
  • Beer
  • Potable water
  • Foodstuffs
2

What are the key specifications?
Tube

White, EPDM

Cover

Red, EPDM with a clear UHMWPE wrap

Reinforcement

High strength synthetic plies with steel helix

Temperature Range

-40°F to +284°F

Safety Factor

3:1

Compliance

FDA and USDA compliant

Standards

Meets FDA title 21 part 177.2600(f) for fatty foods, BfR, ADI free, D.M. 21/03/73, EC 1935/2004

Branding

TEXCEL® CORNUCOPIA™ ALL PURPOSE SANITARY HOSE 150 PSI (10 BAR) W.P. UHMW COVER TEMP. -40F TO 284F (-40C TO 140C) FDA BfR D.M.21/03/73 ADI FREE STERILIZATION AT 230F FOR 30 MINS

3

What are the main product features?
  • UHMWPE cover — abrasion-resistant and antimicrobial, with increased dragability.
4

Which sizes are available?
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in. Hg) Bend Radius Weight (lbs/ft)
FDA-1.0-100C 1" 1-24/64" 150 29 3.5" 0.54
FDA-1.5-100C 1-1/2" 1-62/64" 150 29 5" 0.93
FDA-2.0-100C 2" 2-32/64" 150 29 7.5" 1.28
FDA-3.0-100C 3" 3-32/64" 150 29 11" 2.02
FDA-4.0-100 4" 4-36/64" 150 29 13" 3.09
i
It is recommended that all food grade hose be thoroughly flushed prior to initial use.
