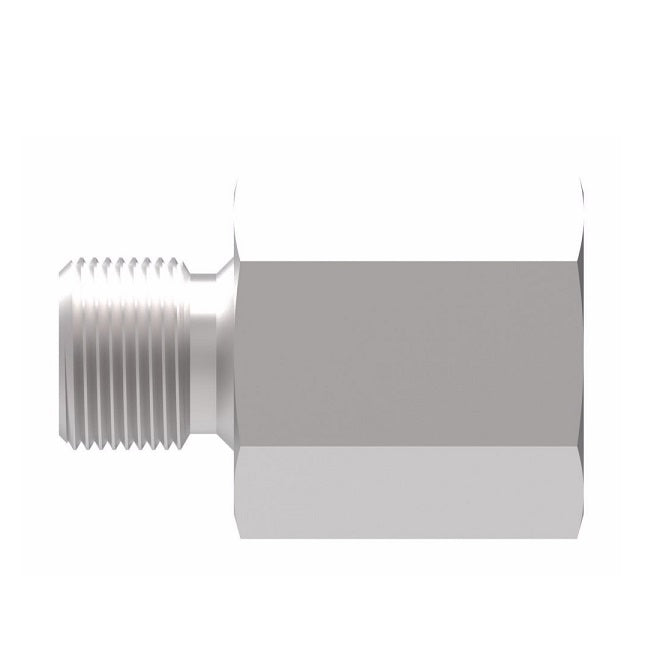

FF1009-1606S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Reducer Adapter (without O-Ring) | -16 Male SAE O-Ring Boss x -06 Female SAE O-Ring Boss | Steel

FF1009-1606S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Reducer Adapter (without O-Ring) | -16 Male SAE O-Ring Boss x -06 Female SAE O-Ring Boss | Steel

Name: FF1009-1606S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Reducer Adapter (without O-Ring) | -16 Male SAE O-Ring Boss x -06 Female SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: FF1009-1606S Danfoss
Price: 342.98 USD
Availability: InStock

$342.98 - $342.98

$342.98

$342.98 - $342.98

$342.98

Aeroquip® by Danfoss
SAE O-Ring Boss Reducer Adapter
Male SAE O-Ring Boss x Female SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF1009-1606S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1in Male O-Ring Boss, 3/8in Female O-Ring Boss
Material(s):	Steel

Construction:
Material: Steel Buna-N O-Rings are standard.


Steel with O-Ring Part Number	Steel without O-Ring Part Number	Thread T1	Thread T2	A
FF1010-0304S	-	3/8-24	7/16-20	0.96"
FF1010-0406S	FF1009-0406S	7/16-20	9/16-18	1.07"
FF1010-0408S	FF1009-0408S	7/16-20	3/4-16	1.26"
FF1010-0604S	FF1009-0604S	9/16-18	7/16-20	0.96"
FF1010-0806S	FF1009-0806S	3/4-16	9/16-18	1.06"
FF1010-1006S	-	7/8-14	9/16-18	0.81"
FF1010-1008S	FF1009-1008S	7/8-14	3/4-16	1.25"
FF1010-1206S	FF1009-1206S	1-1/16-12	9/16-18	1.00"
FF1010-1208S	FF1009-1208S	1-1/16-12	3/4-16	1.00"
FF1010-1210S	FF1009-1210S	1-1/16-12	7/8-14	1.44"
FF1010-1216S	-	1-1/16-12	1-5/16-12	1.79"
FF1010-1412S	-	1-3/16-12	1-1/16-12	1.72"
-	FF1009-1606S	1-5/16-12	9/16-18	1.00"
FF1010-1608S	FF1009-1608S	1-5/16-12	3/4-16	1.00"
FF1010-1610S	FF1009-1610S	1-5/16-12	7/8-14	1.44"
FF1010-1612S	FF1009-1612S	1-5/16-12	1-1/16-12	1.59"
FF1010-2012S	-	1-5/8-12	1-1/16-12	1.00"
FF1010-2016S	FF1009-2016S	1-5/8-12	1-5/16-12	1.00"
FF1010-2416S	-	1-7/8-12	1-5/16-12	1.00"
FF1010-2420S	-	1-7/8-12	1-5/8-12	1.56"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
