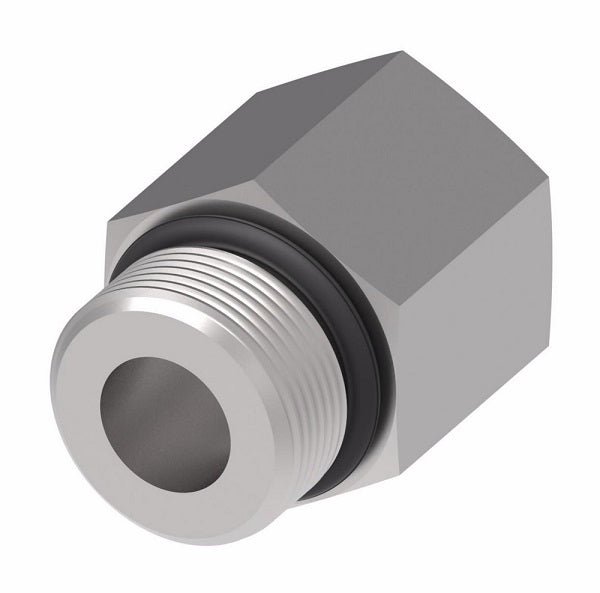

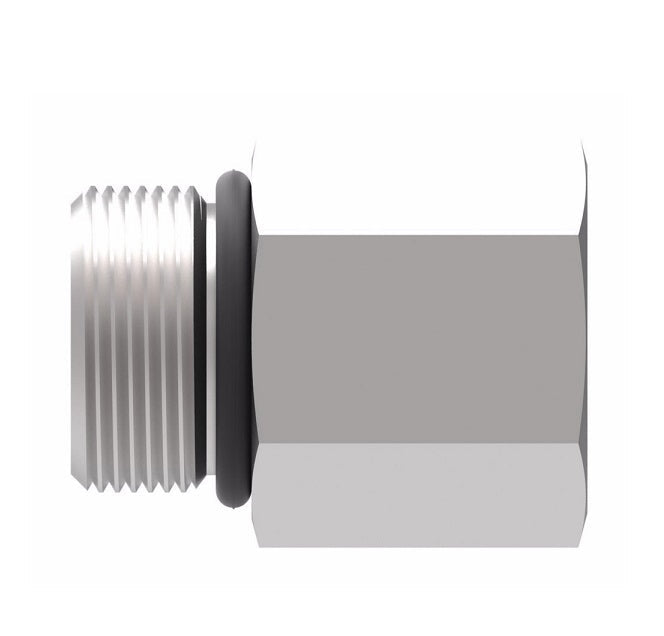

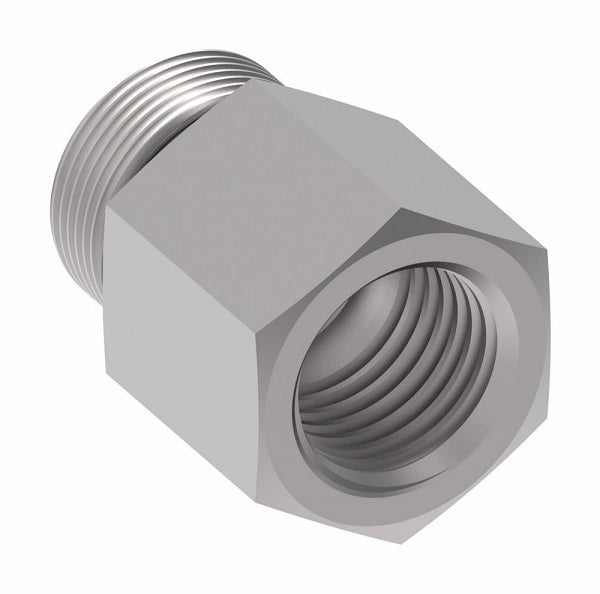

FF1010-1008S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Reducer Adapter | -10 Male SAE O-Ring Boss x -08 Female SAE O-Ring Boss | Steel
FF1010-1008S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Reducer Adapter | -10 Male SAE O-Ring Boss x -08 Female SAE O-Ring Boss | Steel
FF1010-1008S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Reducer Adapter | -10 Male SAE O-Ring Boss x -08 Female SAE O-Ring Boss | Steel
FF1010-1008S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Reducer Adapter | -10 Male SAE O-Ring Boss x -08 Female SAE O-Ring Boss | Steel

FF1010-1008S Aeroquip by Danfoss | SAE O-Ring Boss (ORB) Reducer Adapter | -10 Male SAE O-Ring Boss x -08 Female SAE O-Ring Boss | Steel

$23.53 - $23.53
$23.53
$23.53 - $23.53
$23.53

Aeroquip® by Danfoss
SAE O-Ring Boss Reducer Adapter
Male SAE O-Ring Boss x Female SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1010-1008S Danfoss
Shape (Orientation): Straight
Ends Configuration: 5/8in Male O-Ring Boss, 1/2in Female O-Ring Boss
Material(s): Steel
Construction:
  • Material: Steel
  • Buna-N O-Rings are standard.
Steel
with O-Ring
Part Number 		Steel
without O-Ring
Part Number 		Thread T1 Thread T2 A
FF1010-0304S - 3/8-24 7/16-20 0.96"
FF1010-0406S FF1009-0406S 7/16-20 9/16-18 1.07"
FF1010-0408S FF1009-0408S 7/16-20 3/4-16 1.26"
FF1010-0604S FF1009-0604S 9/16-18 7/16-20 0.96"
FF1010-0806S FF1009-0806S 3/4-16 9/16-18 1.06"
FF1010-1006S - 7/8-14 9/16-18 0.81"
FF1010-1008S FF1009-1008S 7/8-14 3/4-16 1.25"
FF1010-1206S FF1009-1206S 1-1/16-12 9/16-18 1.00"
FF1010-1208S FF1009-1208S 1-1/16-12 3/4-16 1.00"
FF1010-1210S FF1009-1210S 1-1/16-12 7/8-14 1.44"
FF1010-1216S - 1-1/16-12 1-5/16-12 1.79"
FF1010-1412S - 1-3/16-12 1-1/16-12 1.72"
- FF1009-1606S 1-5/16-12 9/16-18 1.00"
FF1010-1608S FF1009-1608S 1-5/16-12 3/4-16 1.00"
FF1010-1610S FF1009-1610S 1-5/16-12 7/8-14 1.44"
FF1010-1612S FF1009-1612S 1-5/16-12 1-1/16-12 1.59"
FF1010-2012S - 1-5/8-12 1-1/16-12 1.00"
FF1010-2016S FF1009-2016S 1-5/8-12 1-5/16-12 1.00"
FF1010-2416S - 1-7/8-12 1-5/16-12 1.00"
FF1010-2420S - 1-7/8-12 1-5/8-12 1.56"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
