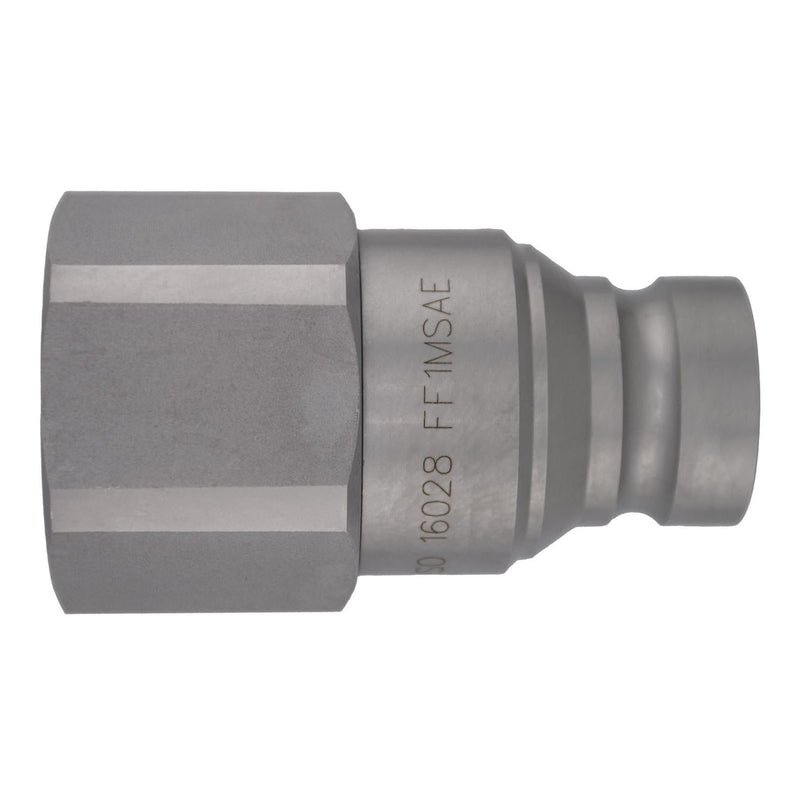

FF14MSAE by Midland | Hydraulic Quick Disconnect | FF Series | Flush Face ISO 16028 Plug | 1/4" Body Size x 1/4" Female SAE O-Ring Boss | Steel

Save $4.77

$11.93

$11.93 - $11.93

$11.93

$7.16

$7.16 - $7.16

$7.16

Midland Industries
Hydraulic Quick Disconnects: FF Series - Flush Face ISO 16028 Plug - Steel

Inventory @ Manufacturers Warehouse: 173 Units

Specifications for Variant SKU: FF14MSAE Midland
Series:	FF Series
Ends Configuration:	1/4in ISO-16028 Flush Face QD Interchange, 1/4in Female O-Ring Boss
Material(s):	Steel

Features:
Steel construction, zinc nickel plated finish. Hardened Nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock. This Anti-Blowout Nitrile/ PTFE bonded seal is designed to prevent blow out or damage during servere service conditions. Durable ball-locking mechanism assures reliable connection everytime. Temp Range -65° to +250°.

Flush Face Series
Body Size	Steel Coupler/ Plug Coupled
	Maximum Working		Burst
	PSI	Bar	PSI	Bar
1/4"	5,000 PSI	345 Bar	18,270 PSI	1,200 Bar
3/8"	4,000 PSI	275 Bar	18,270 PSI	1,200 Bar
1/2"	4,000 PSI	275 Bar	16,500 PSI	1,100 Bar
5/8"	4,000 PSI	275 Bar	14,800 PSI	1,000 Bar
3/4"	4,000 PSI	275 Bar	12,400 PSI	850 Bar
1"	3,000 PSI	200 Bar	12,600 PSI	850 Bar

FF Series \| Flush Face ISO 16028 Socket

Part Number	Body Size	Female SAE O-Ring Boss	Thread
FF14FSAE	1/4"	1/4"	7/16-20
FF38FSAE	3/8"	3/8"	9/16-18
FF3812FSAE	3/8"	1/2"	3/4-16
FF12FSAE	1/2"	1/2"	3/4-16
FF1234FSAE	1/2"	3/4"	1-1/16-12
FF1FSAE	1"	1"	1-5/16-12

FF Series \| Flush Face ISO 16028 Plug

Part Number	Body Size	Female SAE O-Ring Boss	Thread
FF14MSAE	1/4"	1/4"	7/16-20
FF38MSAE	3/8"	3/8"	9/16-18
FF3812MSAE	3/8"	1/2"	3/4-16
FF12MSAE	1/2"	1/2"	3/4-16
FF1234MSAE	1/2"	3/4"	1-1/16-12
FF1MSAE	1"	1"	1-5/16-12
