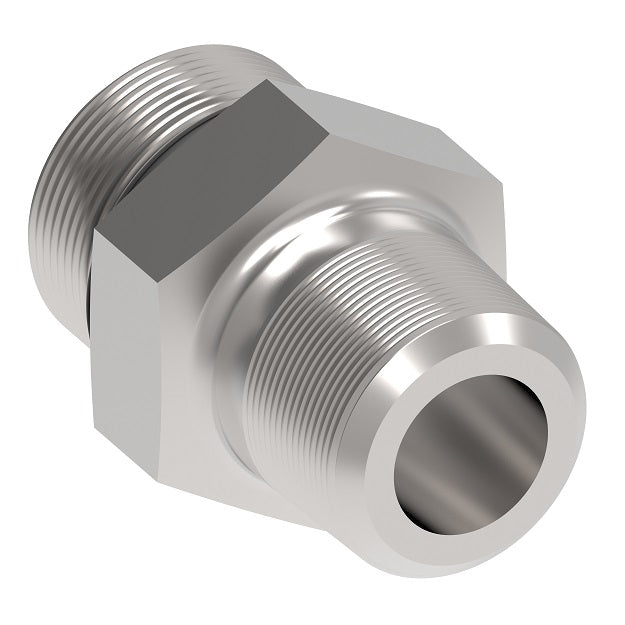

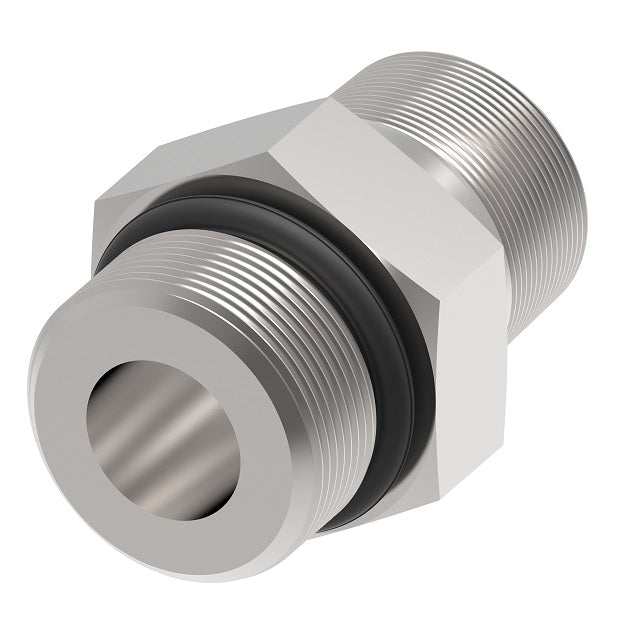

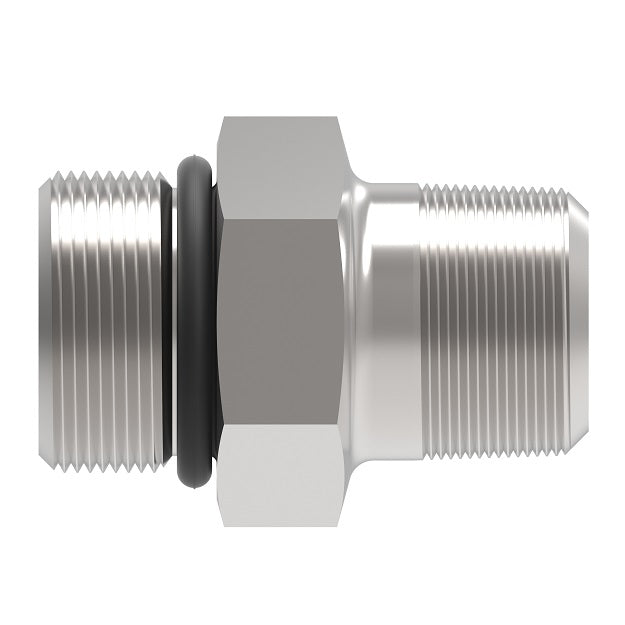

FF1796-1616S Aeroquip by Danfoss | ORB/NPTF External Pipe Adapter | 1" Male O-Ring Boss x 1" Male NPTF | Carbon Steel

FF1796-1616S Aeroquip by Danfoss | ORB/NPTF External Pipe Adapter | 1" Male O-Ring Boss x 1" Male NPTF | Carbon Steel

Name: FF1796-1616S Aeroquip by Danfoss | ORB/NPTF External Pipe Adapter | 1" Male O-Ring Boss x 1" Male NPTF | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF1796-1616S Danfoss
Price: 9.48 USD
Availability: InStock

$9.48 - $9.48

$9.48

$9.48 - $9.48

$9.48

Aeroquip® by Danfoss
ORB/NPTF External Pipe Adapter
Male O-Ring Boss x Male NPTF
Straight

(Formerly Weatherhead series C3249x)

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF1796-1616S Danfoss
Brand:	Aeroquip
Ends Configuration:	1in Male O-Ring Boss, 1in Male NPTF
Material(s):	Carbon Steel


Steel Part Number	Port Size	Male Pipe Thread	Straight Thread B	Hex C	D	L
FF1796-0402S	1/4"	1/8"	7/16-20	9/16"	0.172"	1.05"
FF1796-0604S	3/8"	1/4"	9/16-18	11/16"	0.281"	1.30"
FF1796-0806S	1/2"	3/8"	3/4-16	7/8"	0.391"	1.36"
FF1796-0808S	1/2"	1/2"	3/4-16	7/8"	0.391"	1.55"
FF1796-1008S	5/8"	1/2"	7/8-14	1"	0.484"	1.69"
FF1796-1212S	3/4"	3/4"	1-1/16-12	1-1/4"	0.609"	1.73"
FF1796-1616S	1"	1"	1-5/16-12	1-1/2"	0.844"	2.06"
FF1796-2020S	1-1/4"	1-1/4"	1-5/8-12	1-7/8"	1.078"	2.17"
FF1796-2424S	1-1/2"	1-1/2"	1-7/8-12	2-1/8"	1.312"	2.26"
FF1796-3232S	2"	2"	2 1/2-12	2 3/4"	1.781"	2.47"
