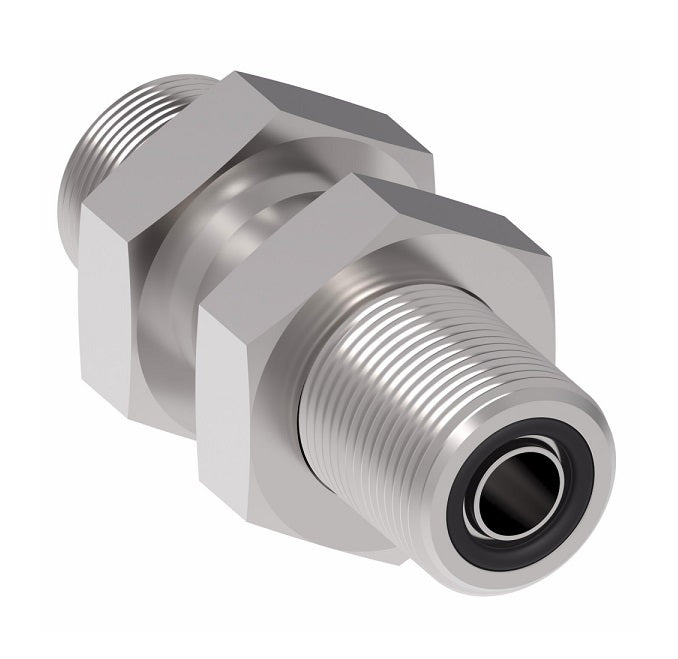

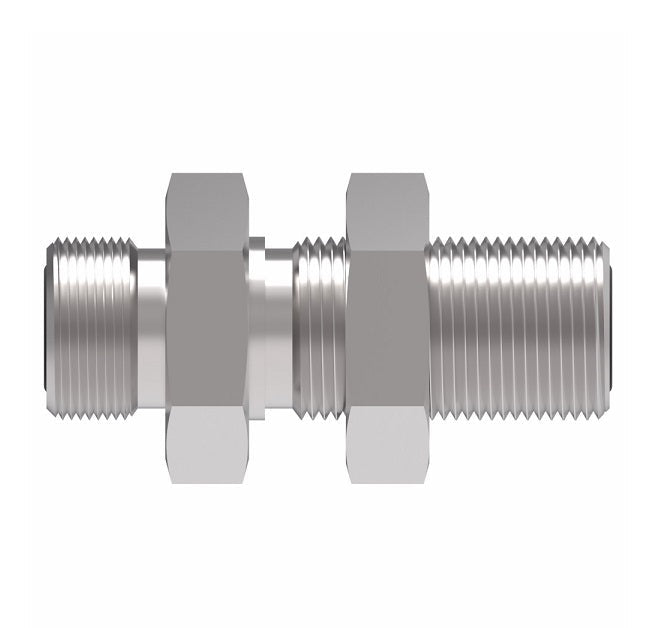

FF1994T0606S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel

FF1994T0606S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel

$7.50 - $7.50
$7.50
$7.50 - $7.50
$7.50

Aeroquip® by Danfoss
Male ORS/ORS Bulkhead Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
Straight

Formerly Weatherhead Series 4325x

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1994T0606S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male O-Ring Face Seal, 3/8in Male O-Ring Face Seal
Material(s): Steel

Aeroquip® by Danfoss
Male ORS/ORS Bulkhead Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
Straight

Formerly Weatherhead Series 4325x

(Formerly Eaton Aeroquip)

Specifications:
  • Ref. SAE 520601
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Steel
Part Number
without Nut		 Tube OD Thread T1 Thread T2 A B Hex 1
FF1994T0404S - 0.25" 9/16-18 9/16-18 1.90" 1.24" 0.81"
FF1994T0606S FF1994H4-0606S 0.38" 11/16-16 11/16-16 2.09" 1.34" 1.00"
FF1994T0608S - 0.38" 11/16-16 13/16-16 2.24" 1.44" 1.12"
FF1994T0808S FF1994H4-0808S 0.50" 13/16-16 13/16-16 2.30" 1.44" 1.12"
FF1994T1010S FF1994H4-1010S 0.63" 1-14 1-14 2.62" 1.60" 1.31"
FF1994T1212S FF1994H4-1212S 0.75" 1-3/16-12 1-3/16-12 2.72" 1.64" 1.50"
FF1994T1616S FF1994H4-1616S 1.00" 1-7/16-12 1-7/16-12 2.76" 1.66" 1.75"
FF1994T2016S - 1.25" 1-11/16-12 1-7/16-12 2.76" 1.66" 1.75"
FF1994T2020S - 1.25" 1-11/16-12 1-11/16-12 2.76" 1.66" 2.00"
FF1994T2424S - 1.50" 2-12 2-12 2.76" 1.66" 2.38"
