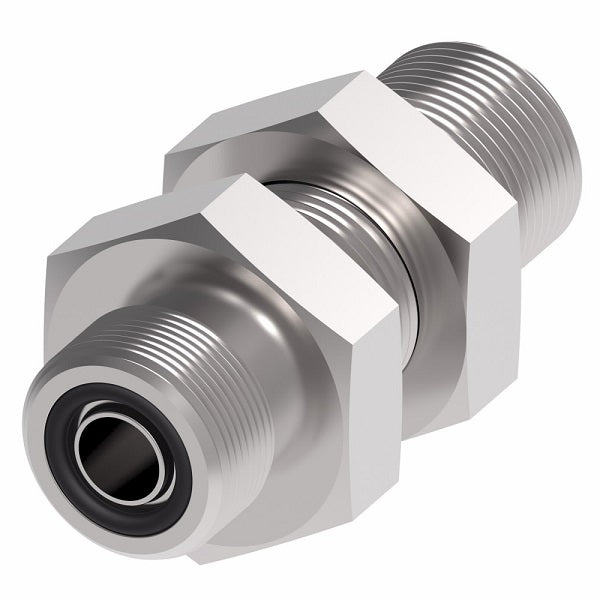

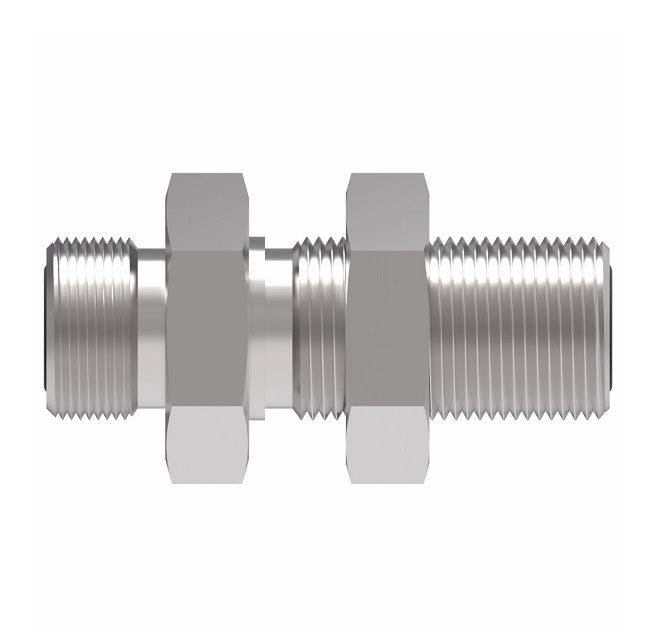

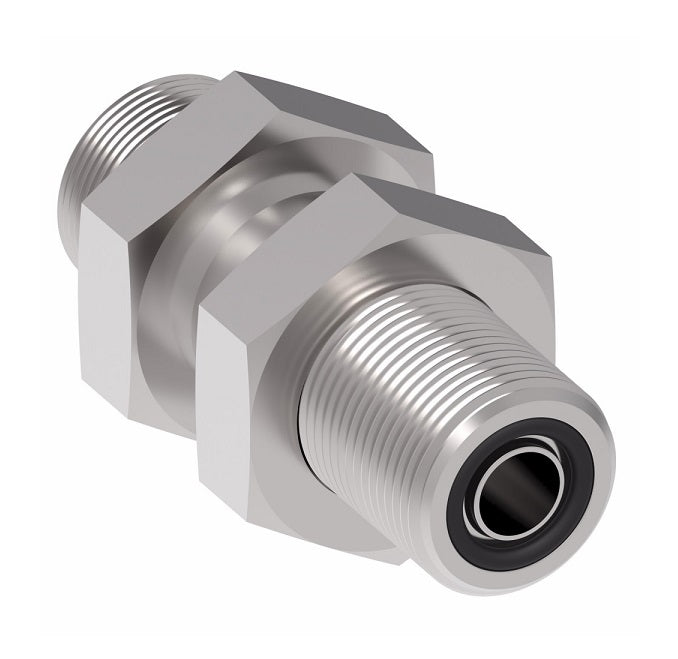

FF1994T0608S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter | -06 Male O-Ring Face Seal x -08 Male O-Ring Face Seal | Steel

Name: FF1994T0608S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter | -06 Male O-Ring Face Seal x -08 Male O-Ring Face Seal | Steel
Brand: Danfoss/Eaton
SKU: FF1994T0608S Danfoss
Price: 34.74 USD
Availability: InStock

$34.74 - $34.74

$34.74

$34.74 - $34.74

$34.74

Aeroquip® by Danfoss
Male ORS/ORS Bulkhead Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
Straight

Formerly Weatherhead Series 4325x

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF1994T0608S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male O-Ring Face Seal, 1/2in Male O-Ring Face Seal
Material(s):	Steel

Aeroquip® by Danfoss
Male ORS/ORS Bulkhead Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
Straight

Formerly Weatherhead Series 4325x

(Formerly Eaton Aeroquip)

Specifications:
Ref. SAE 520601
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Steel Part Number without Nut	Tube OD	Thread T1	Thread T2	A	B	Hex 1
FF1994T0404S	-	0.25"	9/16-18	9/16-18	1.90"	1.24"	0.81"
FF1994T0606S	FF1994H4-0606S	0.38"	11/16-16	11/16-16	2.09"	1.34"	1.00"
FF1994T0608S	-	0.38"	11/16-16	13/16-16	2.24"	1.44"	1.12"
FF1994T0808S	FF1994H4-0808S	0.50"	13/16-16	13/16-16	2.30"	1.44"	1.12"
FF1994T1010S	FF1994H4-1010S	0.63"	1-14	1-14	2.62"	1.60"	1.31"
FF1994T1212S	FF1994H4-1212S	0.75"	1-3/16-12	1-3/16-12	2.72"	1.64"	1.50"
FF1994T1616S	FF1994H4-1616S	1.00"	1-7/16-12	1-7/16-12	2.76"	1.66"	1.75"
FF1994T2016S	-	1.25"	1-11/16-12	1-7/16-12	2.76"	1.66"	1.75"
FF1994T2020S	-	1.25"	1-11/16-12	1-11/16-12	2.76"	1.66"	2.00"
FF1994T2424S	-	1.50"	2-12	2-12	2.76"	1.66"	2.38"
