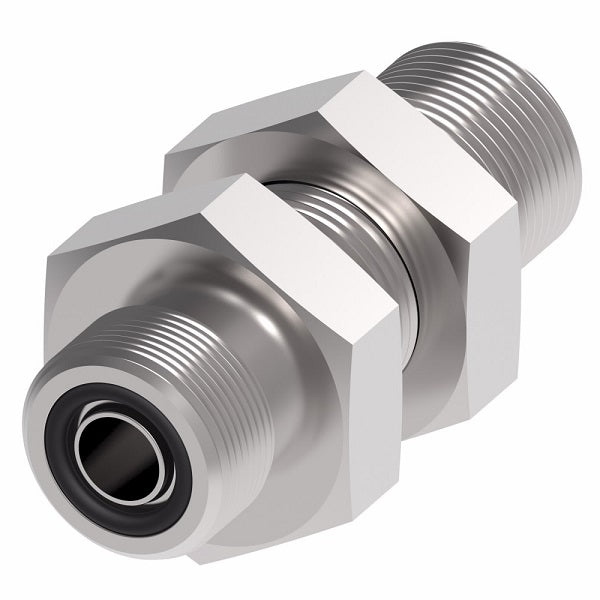

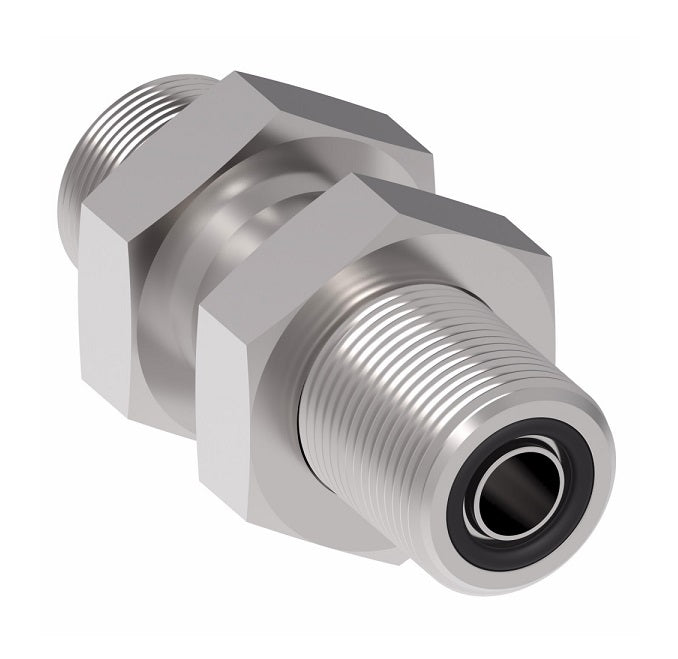

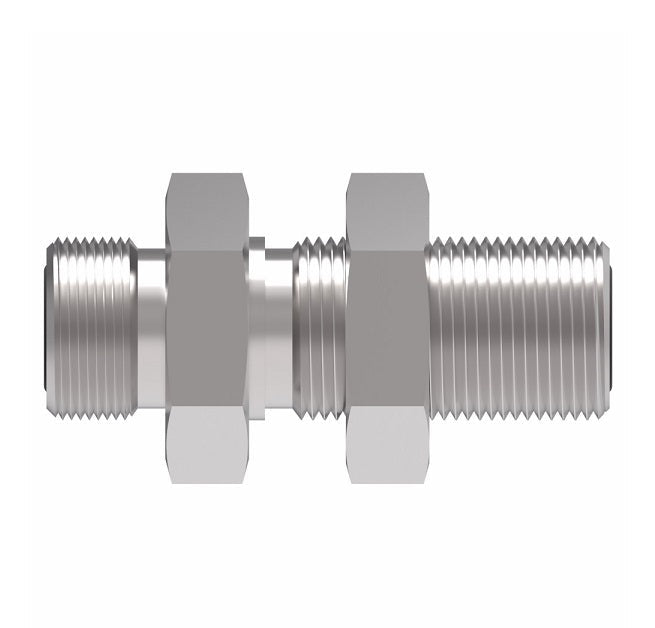

FF1994T0808S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal | Steel
FF1994T0808S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal | Steel
FF1994T0808S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal | Steel
FF1994T0808S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal | Steel

FF1994T0808S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal | Steel

$11.02 - $11.02
$11.02
$11.02 - $11.02
$11.02

Aeroquip® by Danfoss
Male ORS/ORS Bulkhead Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
Straight

Formerly Weatherhead Series 4325x

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1994T0808S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Male O-Ring Face Seal, 1/2in Male O-Ring Face Seal
Material(s): Steel

Aeroquip® by Danfoss
Male ORS/ORS Bulkhead Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
Straight

Formerly Weatherhead Series 4325x

(Formerly Eaton Aeroquip)

Specifications:
  • Ref. SAE 520601
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Steel
Part Number
without Nut		 Tube OD Thread T1 Thread T2 A B Hex 1
FF1994T0404S - 0.25" 9/16-18 9/16-18 1.90" 1.24" 0.81"
FF1994T0606S FF1994H4-0606S 0.38" 11/16-16 11/16-16 2.09" 1.34" 1.00"
FF1994T0608S - 0.38" 11/16-16 13/16-16 2.24" 1.44" 1.12"
FF1994T0808S FF1994H4-0808S 0.50" 13/16-16 13/16-16 2.30" 1.44" 1.12"
FF1994T1010S FF1994H4-1010S 0.63" 1-14 1-14 2.62" 1.60" 1.31"
FF1994T1212S FF1994H4-1212S 0.75" 1-3/16-12 1-3/16-12 2.72" 1.64" 1.50"
FF1994T1616S FF1994H4-1616S 1.00" 1-7/16-12 1-7/16-12 2.76" 1.66" 1.75"
FF1994T2016S - 1.25" 1-11/16-12 1-7/16-12 2.76" 1.66" 1.75"
FF1994T2020S - 1.25" 1-11/16-12 1-11/16-12 2.76" 1.66" 2.00"
FF1994T2424S - 1.50" 2-12 2-12 2.76" 1.66" 2.38"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
