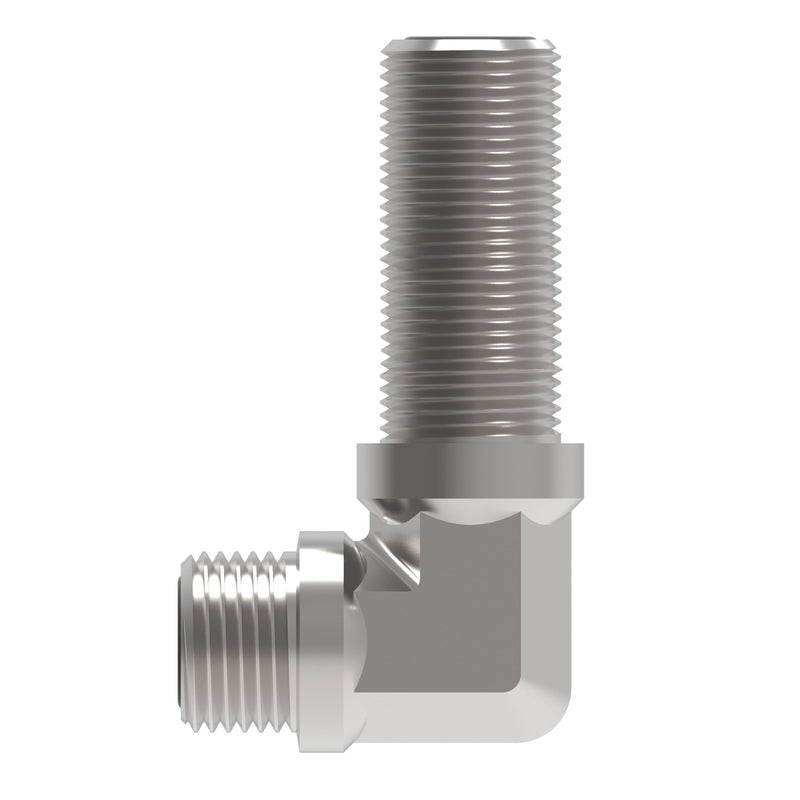

FF2030H4-0606S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Bulkhead Adapter without Nut | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel

Name: FF2030H4-0606S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Bulkhead Adapter without Nut | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel
Brand: Danfoss/Eaton
SKU: FF2030H4-0606S Danfoss
Price: 16.68 USD
Availability: InStock

$16.68 - $16.68

$16.68

$16.68 - $16.68

$16.68

Aeroquip® by Danfoss
ORS Male/ORS Male Bulkhead Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
90° Elbow

Formerly Weatherhead Series 4525x

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF2030H4-0606S Danfoss
Brand:	Aeroquip
Ends Configuration:	3/8in Male O-Ring Face Seal, 3/8in Male O-Ring Face Seal, Some Ends Match
Material(s):	Steel

Specifications:
Ref. SAE 520701
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Steel Part Number without Nut	Tube OD	Thread T1	Thread T2	A	B	E
FF2030T0404S	-	0.25"	9/16-18	9/16-18	0.89"	1.85"	0.17"
FF2030T0606S	FF2030H4-0606S	0.38"	11/16-16	11/16-16	1.02"	2.05"	0.26"
FF2030T0806S	-	0.50"	13/16-16	11/16-16	1.14"	2.12"	0.26"
FF2030T0808S	FF2030H4-0808S	0.50"	13/16-16	13/16-16	1.14"	2.18"	0.38"
FF2030T1010S	-	0.63"	1-14	1-14	1.36"	2.48"	0.48"
FF2030T1212S	FF2030H4-1212S	0.75"	1-3/16-12	1-3/16-12	1.52"	2.65"	0.61"
FF2030T1616S	FF2030H4-1616S	1.00"	1-7/16-12	1-7/16-12	1.67"	2.80"	0.81"
FF2030T2020S	-	1.25"	1-11/16-12	1-11/16-12	1.79"	2.97"	1.03"
