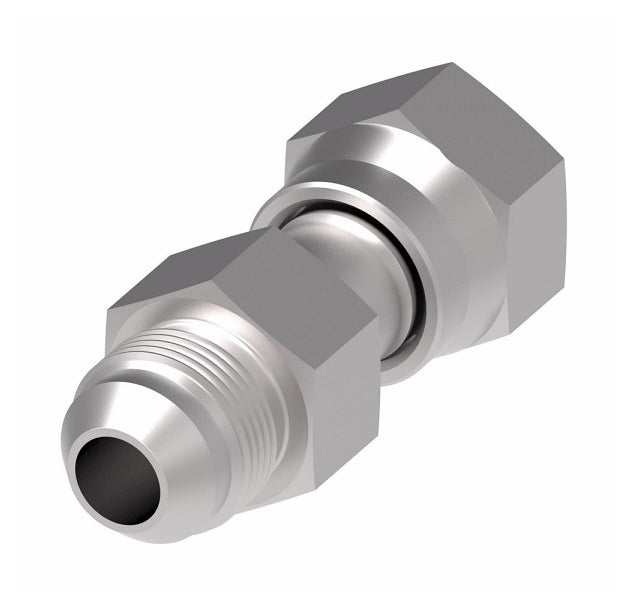

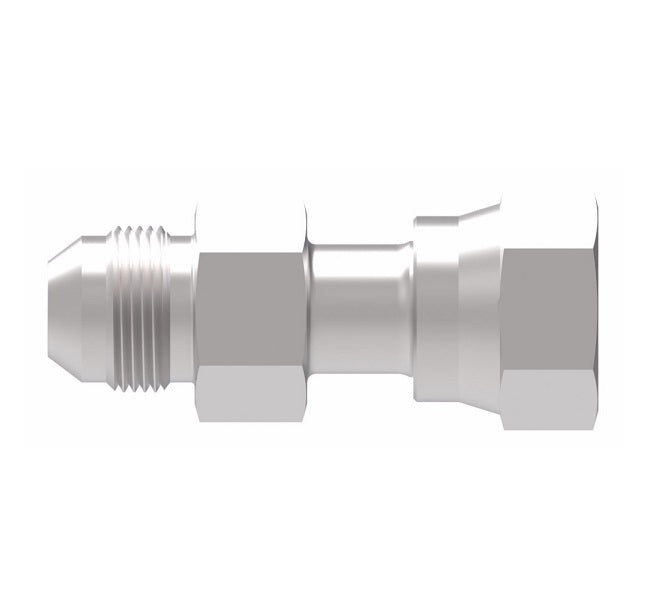

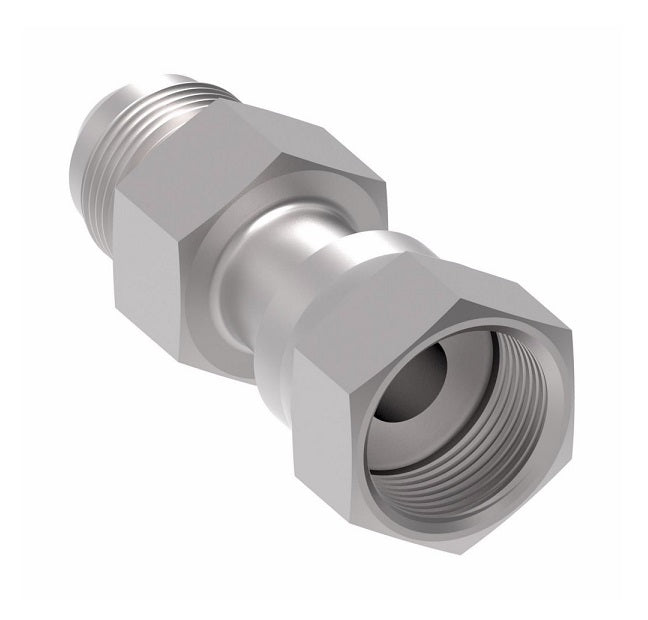

FF2209T0612S Aeroquip by Danfoss | ORS Female Swivel / Male 37° JIC Flare Adapter | -06 Female O-Ring Face Seal Swivel x -12 Male 37° JIC Flare | Steel

FF2209T0612S Aeroquip by Danfoss | ORS Female Swivel / Male 37° JIC Flare Adapter | -06 Female O-Ring Face Seal Swivel x -12 Male 37° JIC Flare | Steel

Name: FF2209T0612S Aeroquip by Danfoss | ORS Female Swivel / Male 37° JIC Flare Adapter | -06 Female O-Ring Face Seal Swivel x -12 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: FF2209T0612S Danfoss
Price: 115.73 USD
Availability: InStock

$115.73 - $115.73

$115.73

$115.73 - $115.73

$115.73

Aeroquip® by Danfoss
ORS Female Swivel / Male 37° JIC Flare Adapter
Female O-Ring Face Seal Swivel x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF2209T0612S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female O-Ring Face Seal, 3/4in Male JIC
Material(s):	Steel

Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	B
FF2209T0404S	-	-	-	-	-
FF2209T0412S	0.25"	9/16-18	1-1/16-12	1.99"	0.86"
FF2209T0606S	-	-	-	-	-
FF2209T0612S	0.38"	11/16-16	1-1/16-12	2.07"	0.86"
FF2209T0808S	0.50"	13/16-16	3/4-16	2.03"	0.66"
FF2209T0812S	0.50"	13/16-16	1-1/16-12	2.25"	0.86"
FF2209T1010S	-	-	-	-	-
FF2209T1212S	0.75"	1-3/16-12	1-1/16-12	2.44"	0.86"
FF2209T1616S	1.00"	1-7/16-12	1-5/16-12	2.82"	0.91"
FF2209T2016S	1.25"	1-11/16-12	1-5/16-12	2.88"	0.91"
FF2209T2020S	-	-	-	-	-

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
