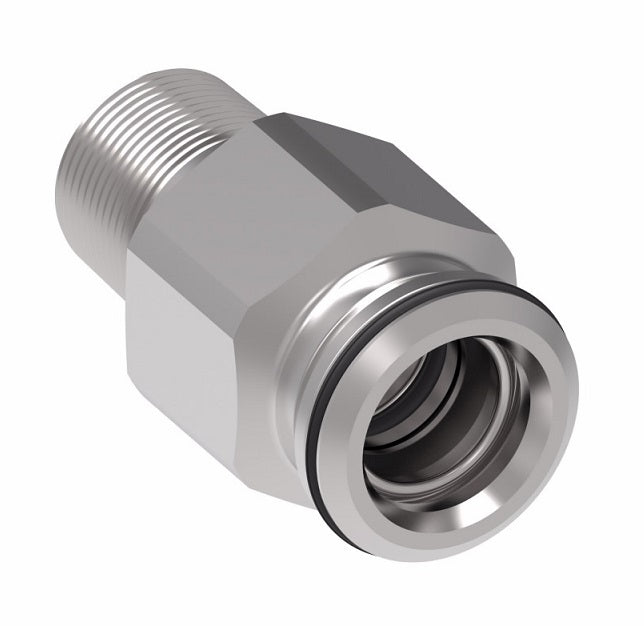

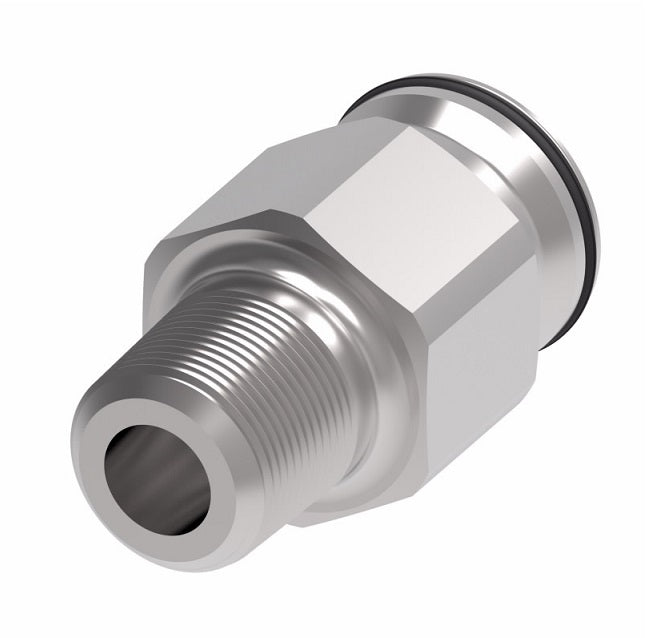

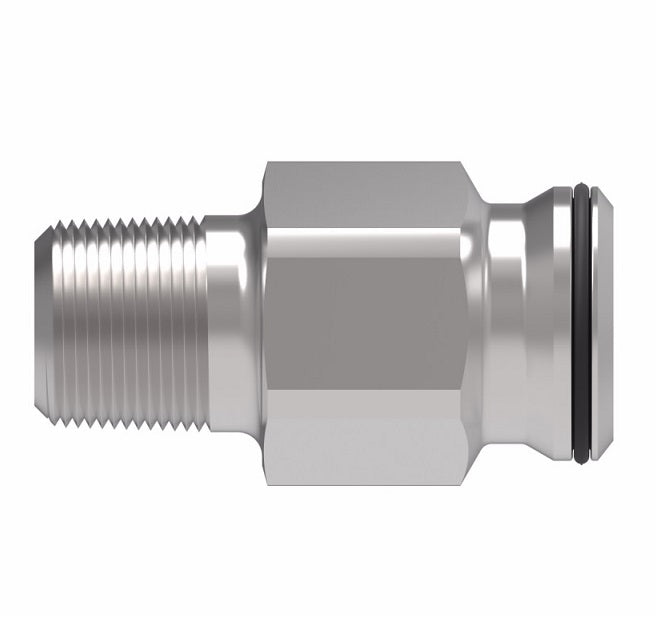

FF3089-1212S Aeroquip by Danfoss | Male NPTF to Female STC (Snap to Connect) Adapter (FF) | -12 Male NPTF x -12 Female STC | Steel
FF3089-1212S Aeroquip by Danfoss | Male NPTF to Female STC (Snap to Connect) Adapter (FF) | -12 Male NPTF x -12 Female STC | Steel
FF3089-1212S Aeroquip by Danfoss | Male NPTF to Female STC (Snap to Connect) Adapter (FF) | -12 Male NPTF x -12 Female STC | Steel
FF3089-1212S Aeroquip by Danfoss | Male NPTF to Female STC (Snap to Connect) Adapter (FF) | -12 Male NPTF x -12 Female STC | Steel

FF3089-1212S Aeroquip by Danfoss | Male NPTF to Female STC (Snap to Connect) Adapter (FF) | -12 Male NPTF x -12 Female STC | Steel

$47.54 - $47.54
$47.54
$47.54 - $47.54
$47.54

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Male NPTF to Female STC (Snap to Connect) Adapter (FF) - Straight

STC adapters come standard with nitrile o-rings.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF3089-1212S Danfoss
Ends Configuration: 3/4in Male NPTF, 3/4in Female STC
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 A B DIA E Hex "T"
Thread		 STC
Release Tool
FF3089-0406S 1.45" 0.57" 0.67" 0.28" 0.75" 1/4-18 FF90213-06
FF3089-0606S 1.45" 0.57" 0.67" 0.41" 0.75" 3/8-18 FF90213-06
FF3089-0608S 1.53" 0.57" 0.80" 0.41" 0.83" 3/8-18 FF90213-08
FF3089-0806S 1.64" 0.76" 0.67" 0.38" 0.88" 1/2-14 FF90213-06
FF3089-0808S 1.49" 0.76" 0.80" 0.48" 0.94" 1/2-14 FF90213-08
FF3089-0810S 1.73" 0.76" 0.96" 0.53" 1.00" 1/2-14 FF90213-10
FF3089-1212S 1.76" 0.76" 1.23" 0.72" 1.26" 3/4-14 FF90213-12
