FF3318T1212-458 Aeroquip by Danfoss | Male ORFS to Male STC (Snap to Connect) Repair Adapter (FF) | -12 Male O-Ring Face Seal x -12 Male STC | Steel

FF3318T1212-458 Aeroquip by Danfoss | Male ORFS to Male STC (Snap to Connect) Repair Adapter (FF) | -12 Male O-Ring Face Seal x -12 Male STC | Steel

$29.98 - $29.98
$29.98
$29.98 - $29.98
$29.98

Aeroquip® by Danfoss

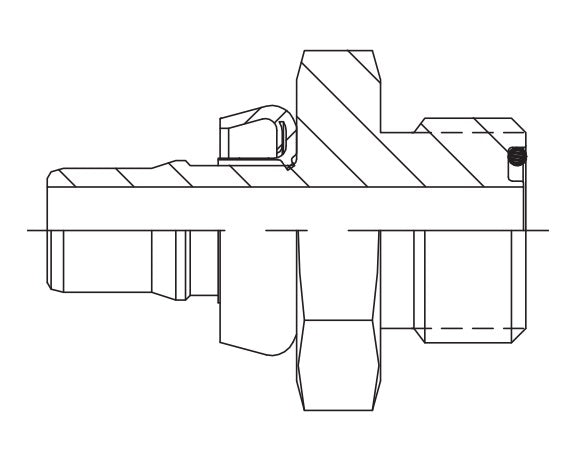

STC (Snap to Connect) Fitting - Male ORFS to Male STC (Snap to Connect) Repair Adapter - Straight

Repair adapters can be used to convert hose assembly with male pipe, female JIC, or female ORFS hose ends to a STC female direct port or a STC female adapter.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF3318T1212-458 Danfoss
Ends Configuration: 3/4in Male O-Ring Face Seal, 3/4in Male STC
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 Thread Male STC Size STC
Release Tool
FF3318T0406-458 9/16-18 -06 FF90213-06
FF3318T0606-458 11/16-16 -06 FF90213-06
FF3318T0808-458 13/16-16 -08 FF90213-08
FF3318T1010-458 1-14 -10 FF90213-10
FF3318T1212-458 1-3/16-12 -12 FF90213-12
FF3318T1616-458 1-7/16-12 -16 FF90213-01-16S
