FF593-16 Aeroquip by Danfoss | SAE Code 61 Split Flange Kit (SAE J518) with Buna-N O-Ring | Complete Kit | 1" Flange Size | Steel

FF593-16 Aeroquip by Danfoss | SAE Code 61 Split Flange Kit (SAE J518) with Buna-N O-Ring | Complete Kit | 1" Flange Size | Steel

$69.84 - $69.84
$69.84
$69.84 - $69.84
$69.84

Aeroquip® by Danfoss
SAE Code 61 Split Flange Kit (SAE J518) with Buna-N O-Ring (Complete Kit)

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF593-16 Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 1in Code 61 Flange
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Technical Info:
Specifications:
  • O-Rings material: Buna-N 90 Durometer
  • Temperature range: -40°F to +250°F (-40°C to + 121°C)

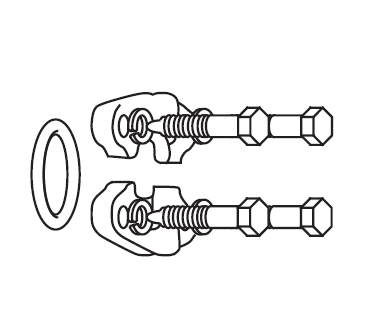

Components Included in Complete Kit:
Complete Kit
Part Number 		Flange Halves
(2 required)
Part Number 		Buna-N O-Ring
(1 required)
Part Number 		Bolts
(4 required)
Part Number 		Lock washer
(4 required)
Part Number 		Nominal
Flange Size		 A B C Bolt torque
lb.-in
FF593-08 449-74446-8 FF9446-210 FF9442-0520-94 210104-5S 1/2" 1.50" 0.68" 0.34" 175-225
FF593-12 449-74446-12 FF9446-214 FF9442-0620-94 210104-6S 3/4" 1.88" 0.88" 0.41" 250-350
FF593-16 449-74446-16 FF9446-219 FF9442-0620-94 210104-2-6S 1" 2.06" 1.04" 0.41" 325-425
FF593-20 449-74446-20 FF9446-222 FF9442-0724-94 210104-7S 1-1/4" 2.31" 1.18" 0.48" 425-550
FF593-24 449-74446-24 FF9446-225 FF9442-0824-94 210104-8S 1-1/2" 2.75" 1.40" 0.53" 550-700
FF593-32 449-74446-32 FF9446-228 FF9442-0824-94 210104-8S 2" 3.06" 1.68" 0.53" 650-800
FF593-40 449-74446-40 FF9446-232 FF9442-0828-94 210104-8S 2-1/2" 3.50" 2.00" 0.53" 950-1100
FF593-48 449-74446-48 FF9446-237 FF9442-1028-94 210104-10S 3" 4.19" 2.44" 0.66" 1650-1800
