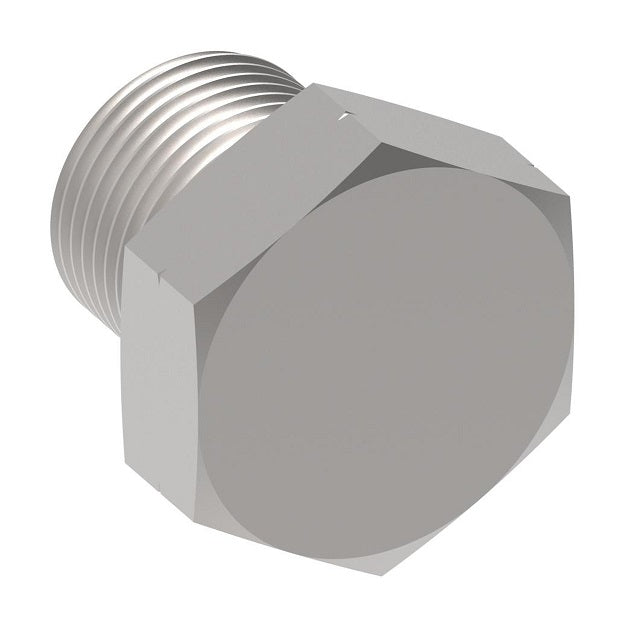

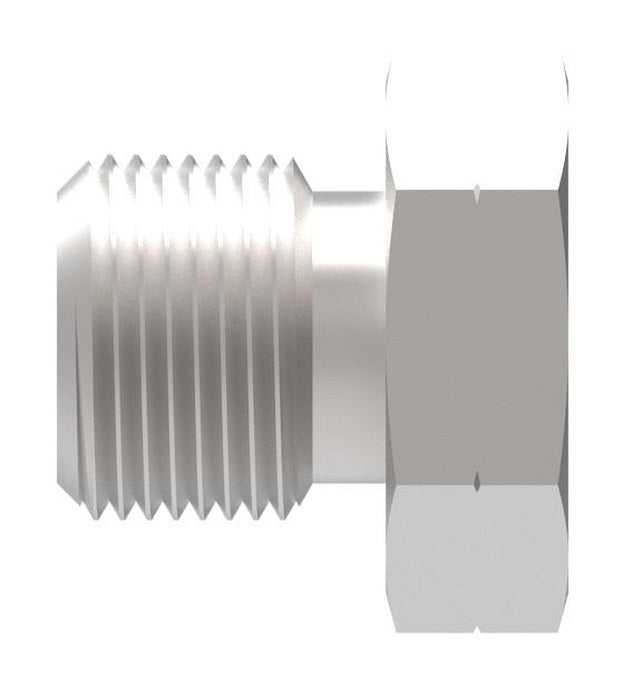

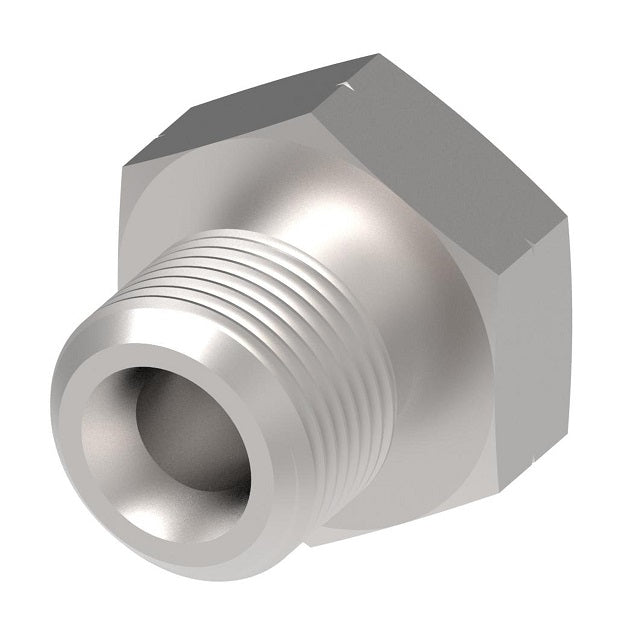

FF91571-12S Aeroquip by Danfoss | BSPP 60° Seat Plug | -12 Male BSPP | Carbon Steel

FF91571-12S Aeroquip by Danfoss | BSPP 60° Seat Plug | -12 Male BSPP | Carbon Steel

Name: FF91571-12S Aeroquip by Danfoss | BSPP 60° Seat Plug | -12 Male BSPP | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF91571-12S Danfoss
Price: 3.76 USD
Availability: InStock

$3.76 - $3.76

$3.76

$3.76 - $3.76

$3.76

Aeroquip® by Danfoss
BSPP 60° Seat Plug

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF91571-12S Danfoss
Brand:	Aeroquip
Ends Configuration:	3/4in Male BSPP
Material(s):	Carbon Steel

Specifications:
Ref. Performance per ISO 8434-6


Steel Part Number	Tube OD	Thread T1	A	Hex E
FF91571-04S	0.25"	G 1/4-19	0.71"	0.75"
FF91571-06S	0.38"	G 3/8-19	0.85"	0.87"
FF91571-08S	0.50"	G 1/2-14	1.02"	1.06"
FF91571-12S	0.75"	G 3/4-14	1.16"	1.26"
FF91571-16S	1.00"	G 1-11	1.34"	1.61"
FF91571-20S	1.25"	G 1-1/4-11	1.48"	1.97"
FF91571-24S	1.50"	G 1-1/2-11	1.57"	2.17"
FF91571-32S	2.00"	G 2-11	1.71"	2.76"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
