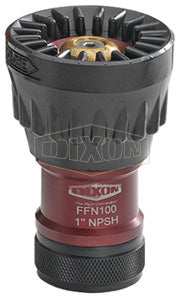

FFN100 Dixon Aluminum Forestry Fog Nozzle - 1" Female NPSH

FFN100 Dixon Aluminum Forestry Fog Nozzle - 1" Female NPSH

Save $95.90 Save $95.90
$239.75
$239.75 - $239.75
$239.75
$143.85
$143.85 - $143.85
$143.85

Dixon Fire Fittings
Fire Nozzles - Forestry Fog Nozzle
Specifications for Variant SKU: FFN100 Dixon
Shape (Orientation): Straight
Material(s): Anodized Aluminum
Features:
  • Maroon hard-coated barrel allows for easy identification.
  • Corrosion resistant plated.
  • Dual flow rate nozzles offer two straight stream and two fog patterns.
  • Combination fog and straight stream.
  • Maximum operating pressure: 600 PSI (water only) at 70°F (21°C).
Part Number Size GPM @ 100 PSI
Straight Stream		 NSN Forestry Service
Specification		 Weight
(Lbs.)
1st 2nd
FFN75GHT 3/4" GHT 1-2 3-4* - - 0.8500
FFN100 1" NPSH 12 25 4210-01-165-6603 USFS 5100-239A
5100-239C
5100-107a		 0.8200
FFN150 1-1/2" NPSH 25 70 - - 1.0250
FFN100NST 1" NST (NH) 12 25 - - 0.6200
FFN150NST 1-1/2" NST (NH) 25 70 4210-01-167-1123 USFS 5100-107A
5100-239C
5100-107a		 0.9100

* GPM @ 40 PSI
