Danfoss A/C & Refrigeration

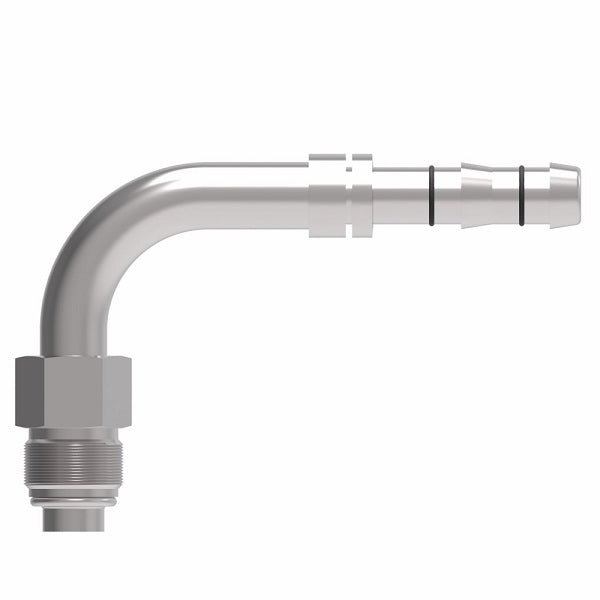

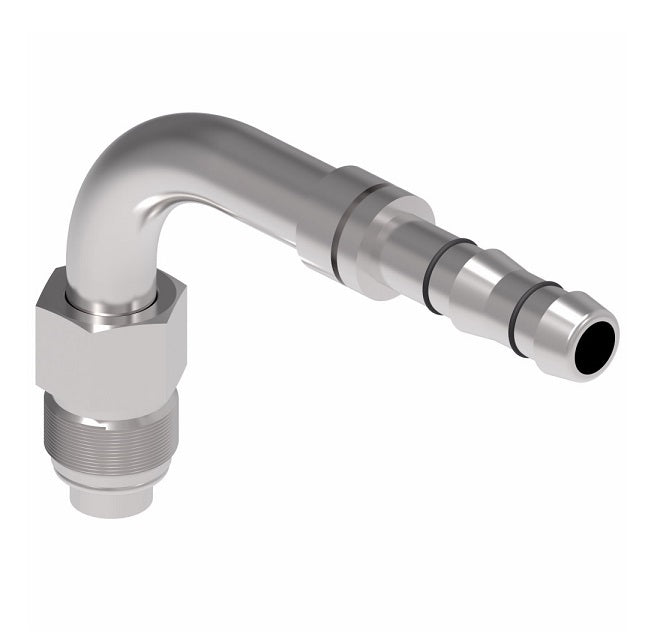

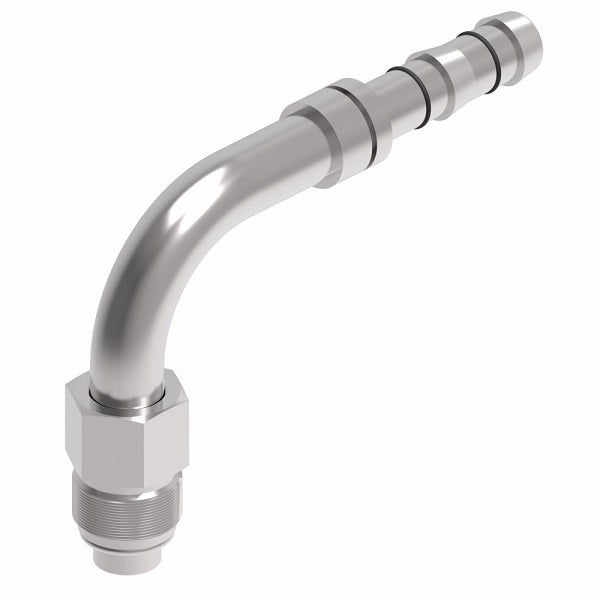

E-Z Clip System - Male O-Ring (Short Pilot) - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3019-07-1010S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Male O-Ring Short Pilot, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3019-03-0606S 5/8-18 -06 3.33" 1.80" 1.77" 0.62" FF14171 22546-11 FF90178-11
FJ3019-02-0608S 5/8-18 -08 3.34" 1.80" 1.77" 0.62" FF14172 22546-11 FF90178-11
FJ3019-04-0808S 3/4-18 -08 3.77" 2.23" 2.31" 0.75" FF14172 22546-13 FF90178-13
FJ3019-06-0810S 3/4-18 -10 3.78" 2.23" 2.31" 0.75" FF14173 22546-13 FF90178-13
FJ3019-01-1012S 7/8-18 -12 4.24" 2.67" 2.45" 0.88" FF14174 22546-15 FF90178-15
FJ3019-05-1212S 1-1/16-16 -12 4.22" 2.64" 2.79" 1.06" FF14174 22546-17 FF90178-17
FJ3019-07-1010S 7/8-18 -10 4.22" 2.67" 2.45" 0.88" FF14173 22546-15 FF90178-15
FJ3019-08-1210S - -10 - - - - FF14173 22546-17 FF90178-17
FJ3019-10-1016S 7/8-18 -16 4.20" 3.03" 2.45" 0.88" FF14401 22546-15 FF90178-15
