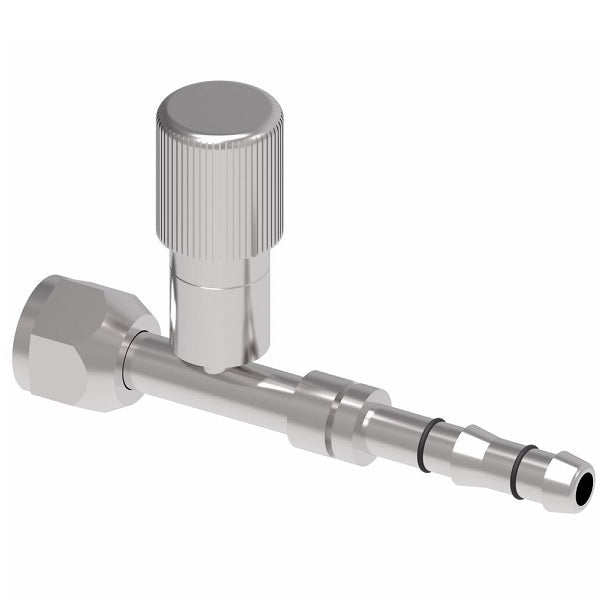

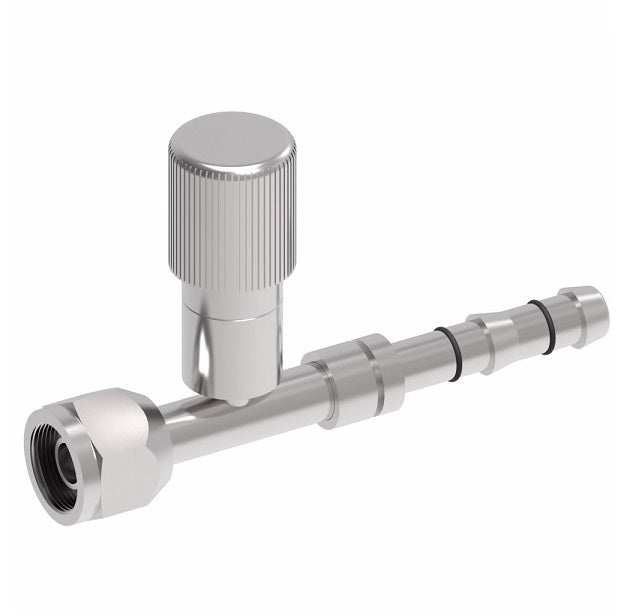

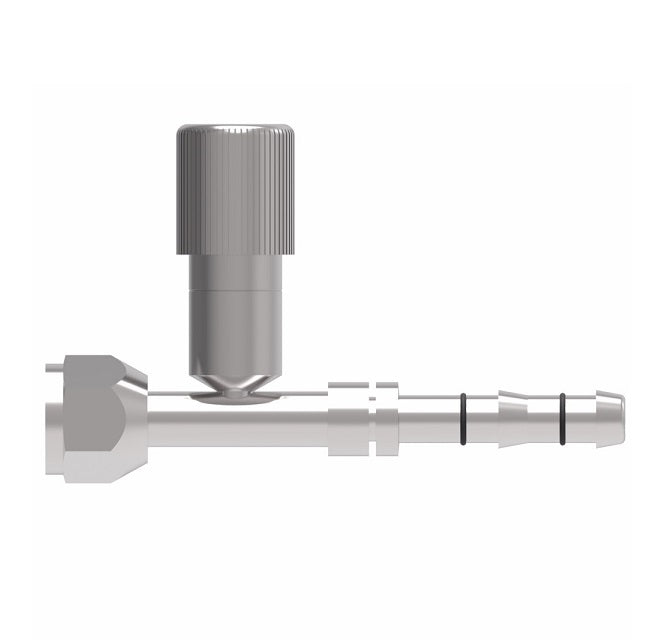

FJ3054-1216S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -16 Hose Barb | Steel
FJ3054-1216S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -16 Hose Barb | Steel
FJ3054-1216S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -16 Hose Barb | Steel
FJ3054-1216S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -16 Hose Barb | Steel

FJ3054-1216S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -16 Hose Barb | Steel

$53.94 - $53.94
$53.94
$53.94 - $53.94
$53.94

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring Straight (Short Pilot) with R134a Low Side Port - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3054-1216S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 3/4in Female O-Ring Short Pilot, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3054-1010S 7/8-14 -10 4.24" 2.25" 0.63" 1.06" FF14173 22546-15 FF90178-15
FJ3054-1012S 7/8-14 -12 4.27" 2.25" 0.63" 1.06" FF14174 22546-15 FF90178-15
FJ3054-1016S 7/8-14 -16 4.42" 2.30" 0.63" 1.06" FF14401 22546-15 FF90178-15
FJ3054-1212S 1-1/16-14 -12 4.58" 2.43" 0.54" 1.25" FF14174 22546-17 FF90178-17
FJ3054-1216S 1-1/16-14 -16 4.68" 2.43" 0.54" 1.25" FF14401 22546-17 FF90178-17
