Danfoss A/C & Refrigeration

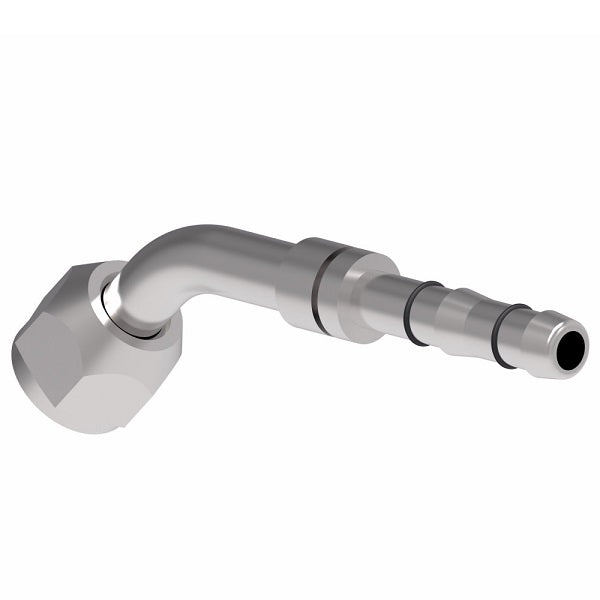

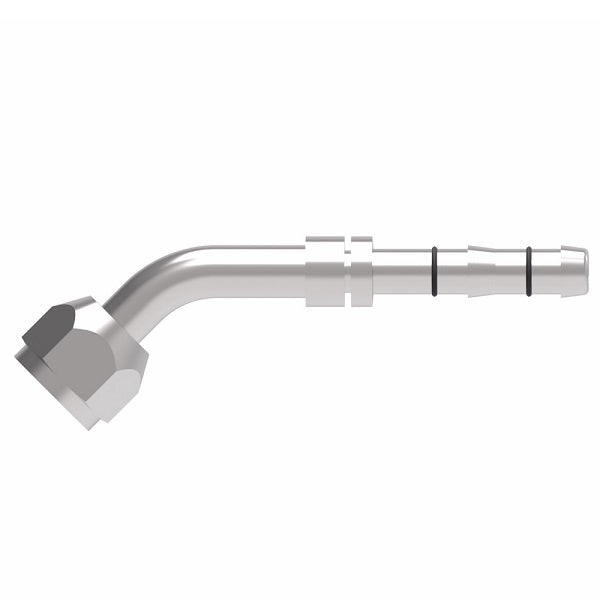

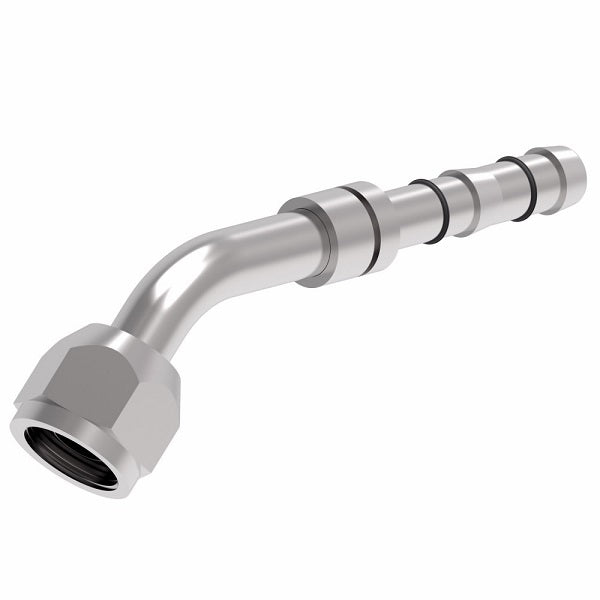

E-Z Clip System - Female O-Ring (Short Pilot) - 45° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3055-03-0808S Danfoss
Brand: E-Z Clip
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Female O-Ring Short Pilot, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3055-01-0606S 5/8-18 -06 3.60" 2.08" 0.67" 0.75" FF14171 22546-11 FF90178-11
FJ3055-02-0608S 5/8-18 -08 3.62" 2.08" 0.67" 0.75" FF14172 22546-11 FF90178-11
FJ3055-03-0808S 3/4-16 -08 3.94" 2.40" 0.73" 0.88" FF14172 22546-13 FF90178-13
FJ3055-04-0810S 3/4-16 -10 3.95" 2.40" 0.73" 0.88" FF14173 22546-13 FF90178-13
FJ3055-05-1010S 7/8-14 -10 4.37" 2.81" 1.19" 1.06" FF14173 22546-15 FF90178-15
FJ3055-06-1012S 7/8-14 -12 4.46" 2.88" 1.25" 1.06" FF14174 22546-15 FF90178-15
FJ3055-07-1212S 1-1/16-14 -12 5.33" 3.75" 1.47" 1.25" FF14174 22546-17 FF90178-17
FJ3055-08-1016S 7/8-14 -16 4.56" 2.66" 1.25" 1.06" FF14401 22546-15 FF90178-15
