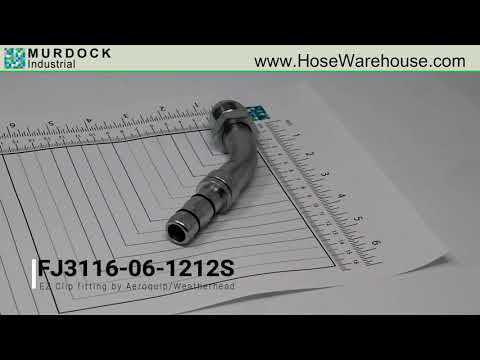

FJ3116-06-1212S E-Z Clip System by Danfoss | Male O-Ring 45° Elbow (Short Pilot) | A/C Refrigeration Fitting | -12 Male O-Ring Short Pilot x -12 Hose Barb| Steel
FJ3116-06-1212S E-Z Clip System by Danfoss | Male O-Ring 45° Elbow (Short Pilot) | A/C Refrigeration Fitting | -12 Male O-Ring Short Pilot x -12 Hose Barb | Steel
FJ3116-06-1212S E-Z Clip System by Danfoss | Male O-Ring 45° Elbow (Short Pilot) | A/C Refrigeration Fitting | -12 Male O-Ring Short Pilot x -12 Hose Barb | Steel
FJ3116-06-1212S E-Z Clip System by Danfoss | Male O-Ring 45° Elbow (Short Pilot) | A/C Refrigeration Fitting | -12 Male O-Ring Short Pilot x -12 Hose Barb| Steel

FJ3116-06-1212S E-Z Clip System by Danfoss | Male O-Ring 45° Elbow (Short Pilot) | A/C Refrigeration Fitting | -12 Male O-Ring Short Pilot x -12 Hose Barb | Steel

$48.39 - $48.39
$48.39
$48.39 - $48.39
$48.39

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring (Short Pilot) - 45° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3116-06-1212S Danfoss
Brand: E-Z Clip
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Male O-Ring Short Pilot, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3116-01-0606S 5/8-18 -06 3.99" 2.47" 0.94" 0.62" FF14171 22546-11 FF90178-11
FJ3116-04-0608S 5/8-18 -08 4.01" 2.47" 0.94" 0.62" FF14172 22546-11 FF90178-11
FJ3116-03-0808S 3/4-18 -08 4.59" 2.83" 1.20" 0.75" FF14172 22546-13 FF90178-13
FJ3116-02-1010S 7/8-18 -10 4.65" 3.10" 1.46" 0.88" FF14173 22546-15 FF90178-15
FJ3116-05-1012S 7/8-18 -12 4.68" 3.10" 1.47" 0.88" FF14174 22546-15 FF90178-15
FJ3116-06-1212S 1-1/16-16 -12 4.90" 3.32" 1.53" 1.06" FF14174 22546-17 FF90178-17
