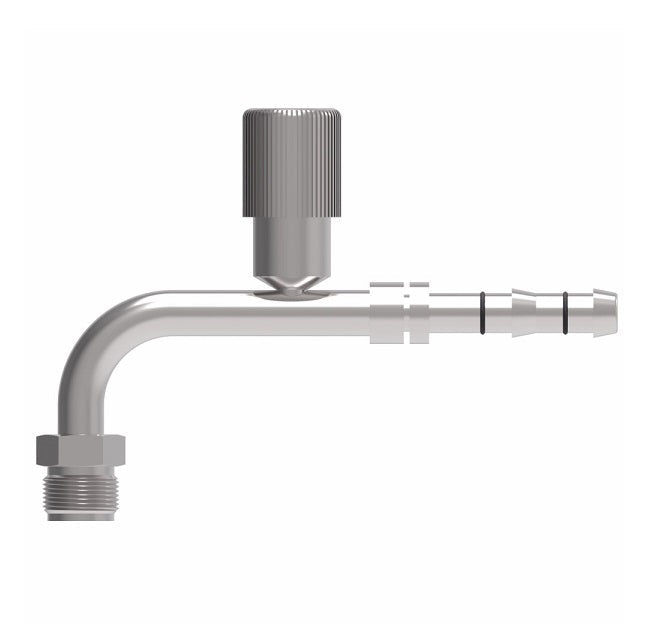

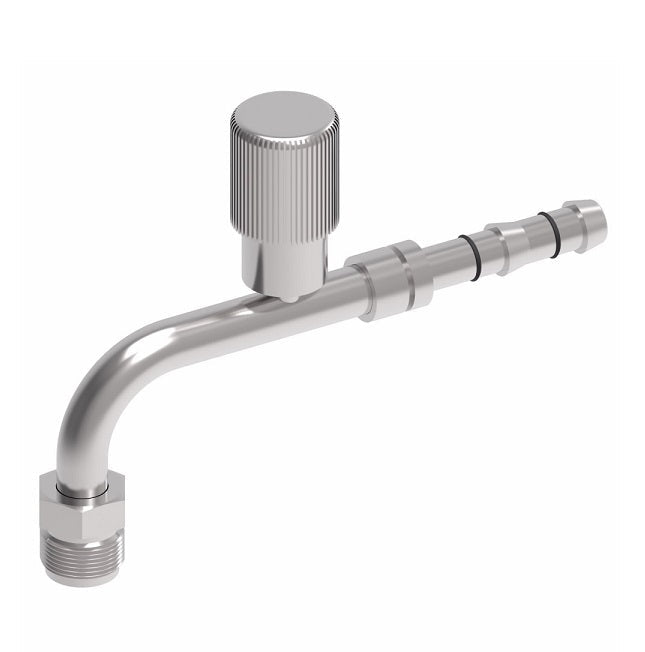

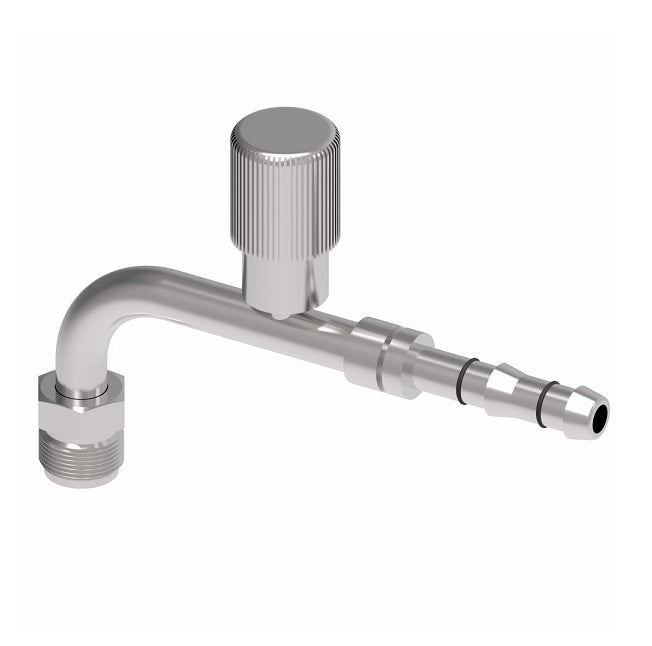

FJ3134-03-1010S E-Z Clip System by Danfoss | Male O-Ring 90° Elbow (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb| Steel
FJ3134-03-1010S E-Z Clip System by Danfoss | Male O-Ring 90° Elbow (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel
FJ3134-03-1010S E-Z Clip System by Danfoss | Male O-Ring 90° Elbow (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel
FJ3134-03-1010S E-Z Clip System by Danfoss | Male O-Ring 90° Elbow (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb| Steel

FJ3134-03-1010S E-Z Clip System by Danfoss | Male O-Ring 90° Elbow (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel

$123.42 - $123.42
$123.42
$123.42 - $123.42
$123.42

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring (Short Pilot) with R134a High Side Port - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3134-03-1010S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Male O-Ring Short Pilot, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3134-01-0606S 5/8-18 -06 - - - - - FF14171 22546-11 FF90178-11
FJ3134-02-0808S 3/4-18 -08 4.61" 3.07" 0.63" 2.31" 0.75" FF14172 22546-13 FF90178-13
FJ3134-03-1010S 7/8-18 -10 4.81" 3.25" 0.63" 2.34" 0.88" FF14173 22546-15 FF90178-15
