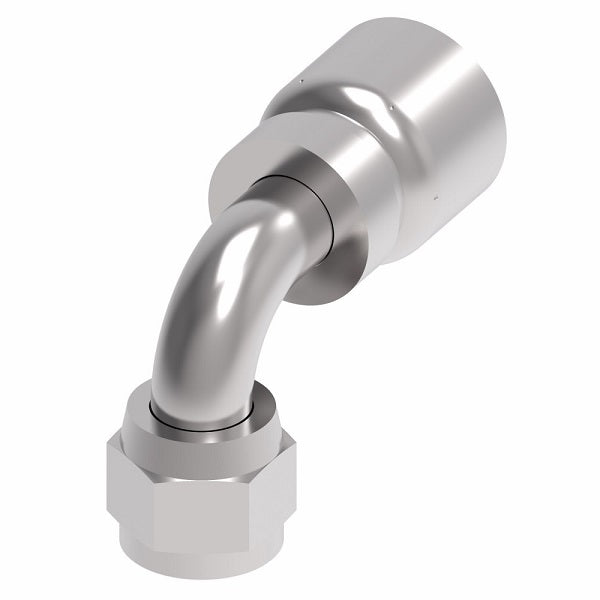

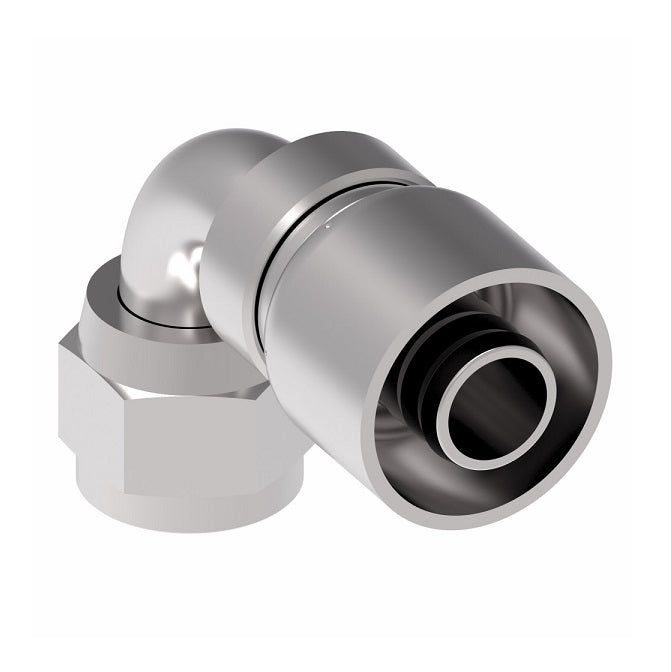

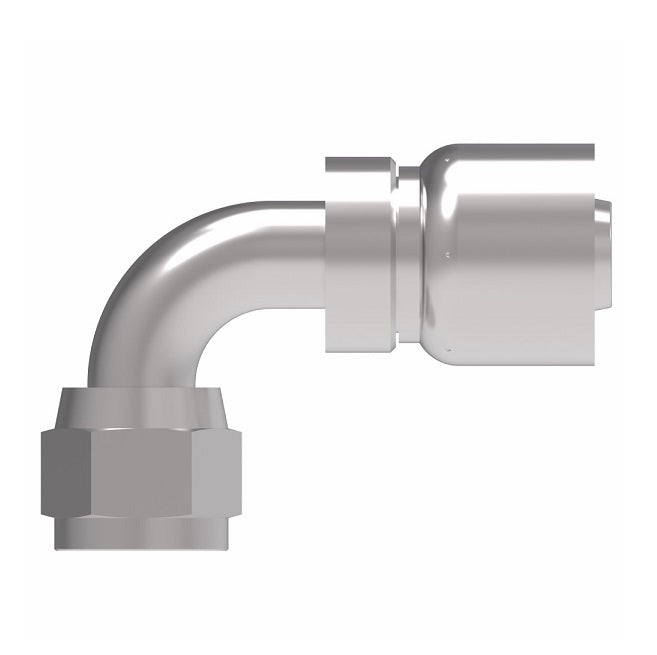

FJ3244-0505S Aeroquip by Danfoss | Female Universal Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -05 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -05 Hose Barb | Steel

FJ3244-0505S Aeroquip by Danfoss | Female Universal Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -05 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -05 Hose Barb | Steel

$26.01 - $26.01
$26.01
$26.01 - $26.01
$26.01

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female Universal Swivel - 90° Elbow

Female JIC Swivel also Couples with SAE 45° Flare.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ3244-0505S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/16in Female JIC, 5/16in Hose Barb, 5/16in Female SAE 45 Flare
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   FC234 Series  |   FC300 Series  |   FC350 Series  |   FC355 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D H Hex
FJ3244-0404S -04 7/16-20 1.61" 0.83" 0.68" 0.56"
FJ3244-0405S -05 7/16-20 1.62" 0.83" 0.68" 0.56"
FJ3244-0505S -05 1/2-20 1.68" 0.89" 0.77" 0.62"
FJ3244-0808S -08 3/4-16 2.07" 1.27" 1.09" 0.88"
FJ3244-0810S -10 3/4-16 2.17" 1.29" 1.09" 0.88"
FJ3244-1010S -10 7/8-14 2.51" 1.63" 1.23" 1.00"
FJ3244-1012S -12 7/8-14 2.60" 1.71" 1.23" 1.00"
