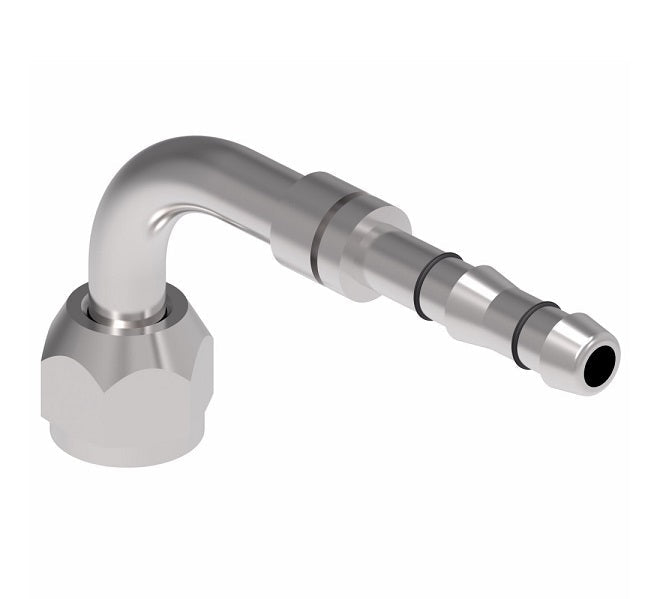

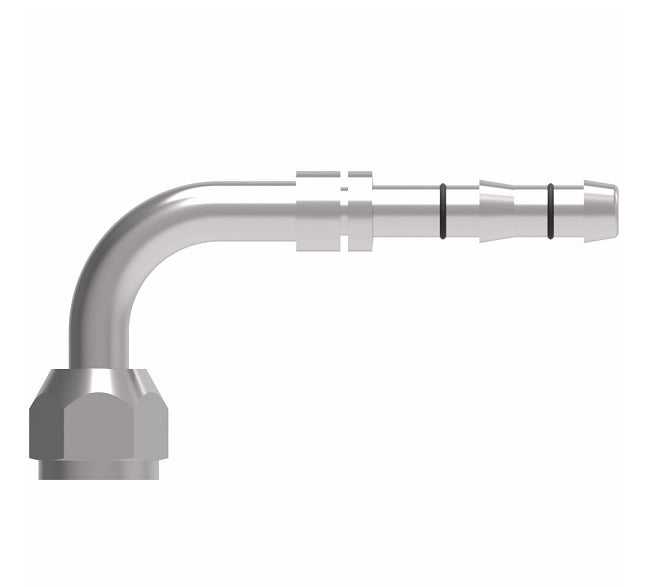

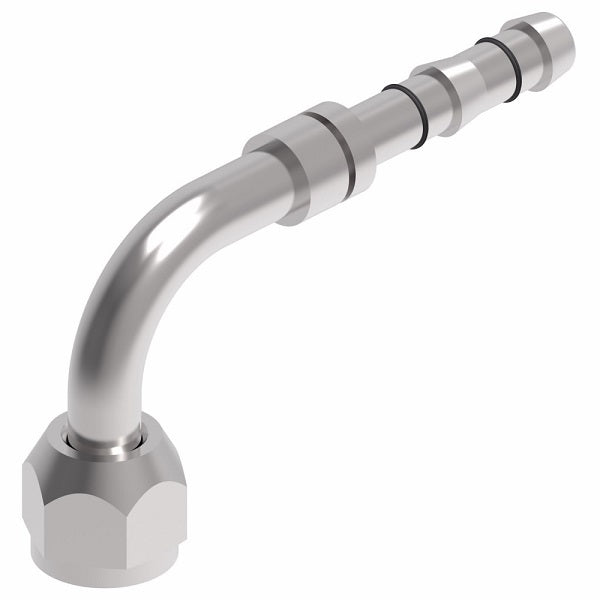

FJ3288-01-0606S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) | A/C Refrigeration Fitting | -06 Female O-Ring Long Pilot x -06 Hose Barb | Steel

FJ3288-01-0606S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) | A/C Refrigeration Fitting | -06 Female O-Ring Long Pilot x -06 Hose Barb | Steel

$15.78 - $15.78
$15.78
$15.78 - $15.78
$15.78

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Short Pilot) - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FJ3288-01-0606S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female O-Ring Long Pilot, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3288-01-0606S 5/8-18 -06 3.32" 1.79" 1.38" 0.75" FF14171 22546-11 FF90178-11
FJ3288-02-0808S 3/4-16 -08 3.77" 2.23" 1.62" 0.88" FF14172 22546-13 FF90178-13
FJ3288-03-0806S 3/4-16 -06 3.75" 2.33" 1.62" 0.88" FF14171 22546-13 FF90178-13
FJ3288-05-1016S 7/8-14 -16 4.40" 2.72" 1.89" 1.06" FF14401 22546-15 FF90178-15
FJ3288-04-0810S 3/4-16 -10 3.78" 2.23" 1.62" 0.88" FF14173 22546-13 FF90178-13
FJ3288-06-1216S 1-1/16-14 -16 4.84" 3.16" 2.56" 1.25" FF14401 22546-17 FF90178-17
FJ3288-07-1012S 7/8-14 -12 4.24" 2.67" 1.89" 1.06" FF14174 22546-15 FF90178-15
FJ3288-08-1212S 1-1/16-14 -12 4.74" 3.16" 2.56" 1.25" FF14174 22546-17 FF90178-17
FJ3288-11-1010S 7/8-14 -16 4.22" 2.67" 1.89" 1.06" FF14173 22546-15 FF90178-15
FJ3288-13-1216S 1-1/16-14 -16 4.84" 3.16" 4.33" 1.25" FF14401 22546-17 FF90178-17
