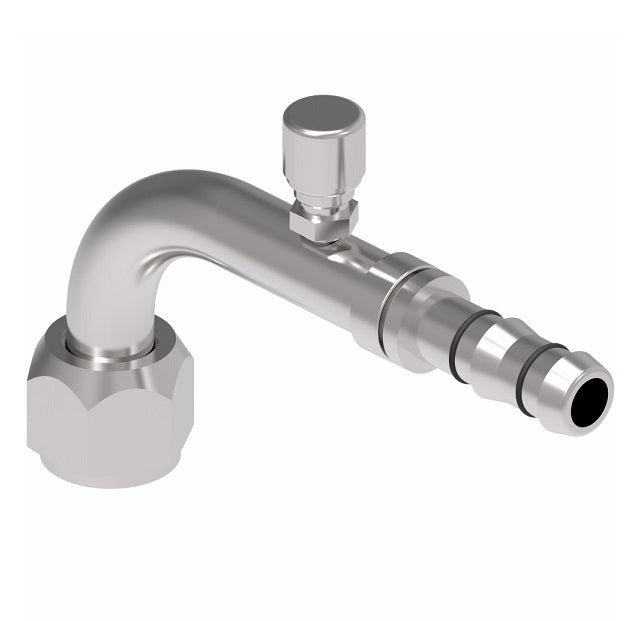

FJ3289-05-1012S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Charge Port (7/16-20 thd) | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -12 Hose Barb | Steel
FJ3289-05-1012S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Charge Port (7/16-20 thd) | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -12 Hose Barb | Steel
FJ3289-05-1012S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Charge Port (7/16-20 thd) | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -12 Hose Barb | Steel
FJ3289-05-1012S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Charge Port (7/16-20 thd) | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -12 Hose Barb | Steel

FJ3289-05-1012S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Charge Port (7/16-20 thd) | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -12 Hose Barb | Steel

$71.06 - $71.06
$71.06
$71.06 - $71.06
$71.06

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Long Pilot) with Charge Port (7/16-20 thd) - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3289-05-1012S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female O-Ring Long Pilot, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3289-03-0606S 5/8-18 -06 4.35" 2.82" 0.69" 1.35" 0.75" FF14171 22546-11 FF90178-11
FJ3289-01-0808S 3/4-16 -08 4.61" 2.59" 0.69" 1.62" 0.88" FF14172 22546-13 FF90178-13
FJ3289-02-1010S 7/8-14 -10 4.8" 2.77" 0.63" 1.93" 1.06" FF14173 22546-15 FF90178-15
FJ3289-04-0810S 3/4-16 -10 4.62" 2.59" 0.69" 1.62" 0.88" FF14173 22546-13 FF90178-13
FJ3289-05-1012S 7/8-14 -12 4.82" 2.77" 0.63" 1.93" 1.06" FF14174 22546-15 FF90178-15
