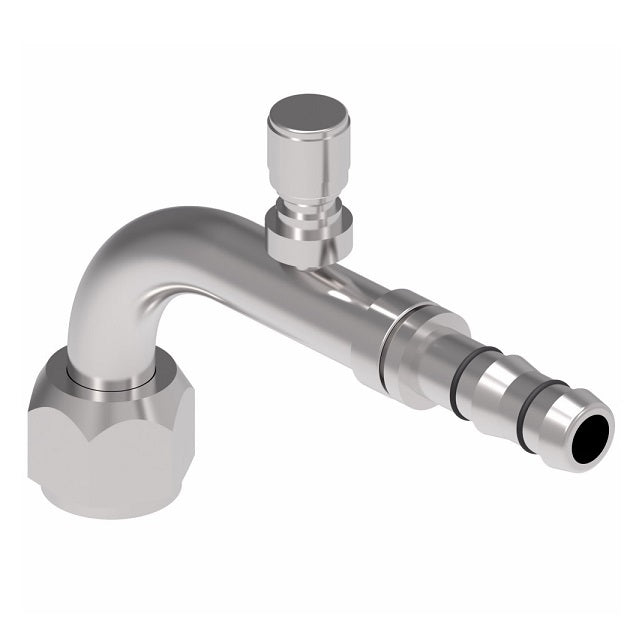

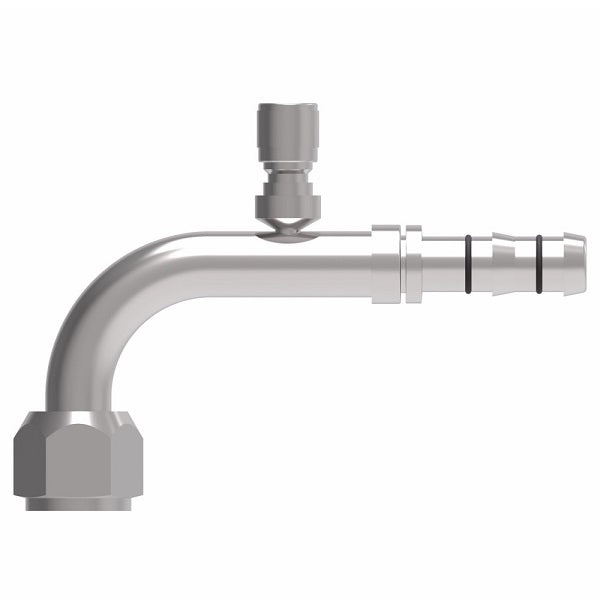

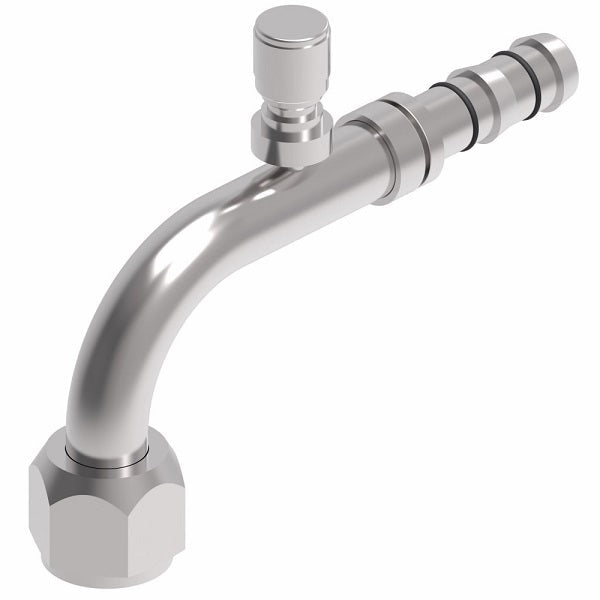

FJ3460-01-1010S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Switch Port (M12 X 1.5)| A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -10 Hose Barb| Steel
FJ3460-01-1010S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Switch Port (M12 X 1.5) | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -10 Hose Barb | Steel
FJ3460-01-1010S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Switch Port (M12 X 1.5) | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -10 Hose Barb | Steel
FJ3460-01-1010S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Switch Port (M12 X 1.5)| A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -10 Hose Barb| Steel

FJ3460-01-1010S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Switch Port (M12 X 1.5) | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -10 Hose Barb | Steel

$97.69 - $97.69
$97.69
$97.69 - $97.69
$97.69

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Long Pilot) with Switch Port (M12 X 1.5) - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3460-01-1010S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female O-Ring Long Pilot, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3460-01-1010S 7/8-14 -10 4.80" 3.25" 0.79" 1.89" 1.06" FF14173 22546-15 FF90178-15
FJ3460-02-1012S 7/8-14 -12 4.83" 3.25" 0.79" 1.89" 1.06" FF14174 22546-15 FF90178-15
FJ3460-03-1212S 1-1/16-14 -12 5.08" 3.50" 0.54" 2.56" 1.25" FF14174 22546-17 FF90178-17
