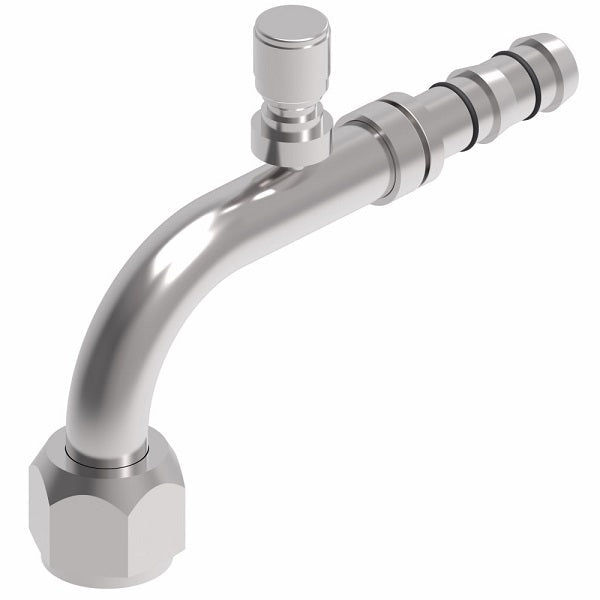

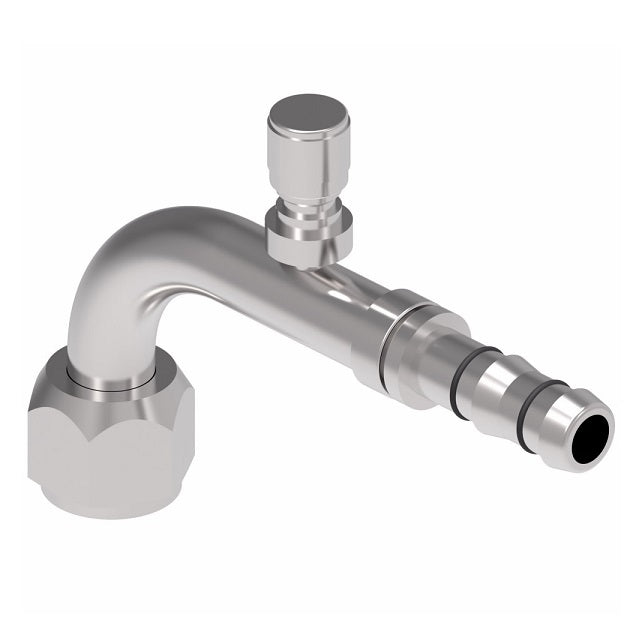

FJ3460-02-1012S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Switch Port (M12 X 1.5) | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -12 Hose Barb | Steel
Original price
$77.56
-
Original price
$77.56
Original price
$77.56
$77.56
-
$77.56
Current price
$77.56
| Additional Information: | |||
|---|---|---|---|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | F Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | |
| Neoprene | Green HNBR | |||||||||
| FJ3460-01-1010S | 7/8-14 | -10 | 4.80" | 3.25" | 0.79" | 1.89" | 1.06" | FF14173 | 22546-15 | FF90178-15 |
| FJ3460-02-1012S | 7/8-14 | -12 | 4.83" | 3.25" | 0.79" | 1.89" | 1.06" | FF14174 | 22546-15 | FF90178-15 |
| FJ3460-03-1212S | 1-1/16-14 | -12 | 5.08" | 3.50" | 0.54" | 2.56" | 1.25" | FF14174 | 22546-17 | FF90178-17 |
