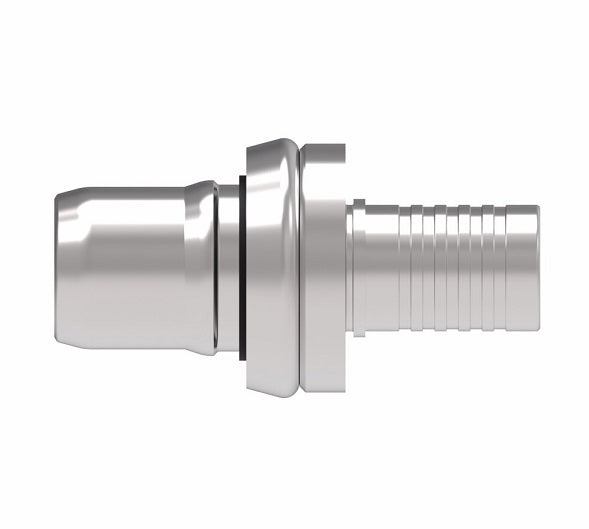

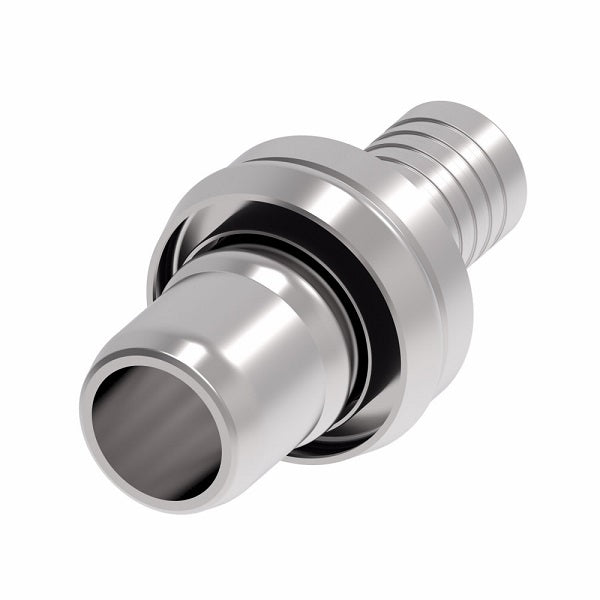

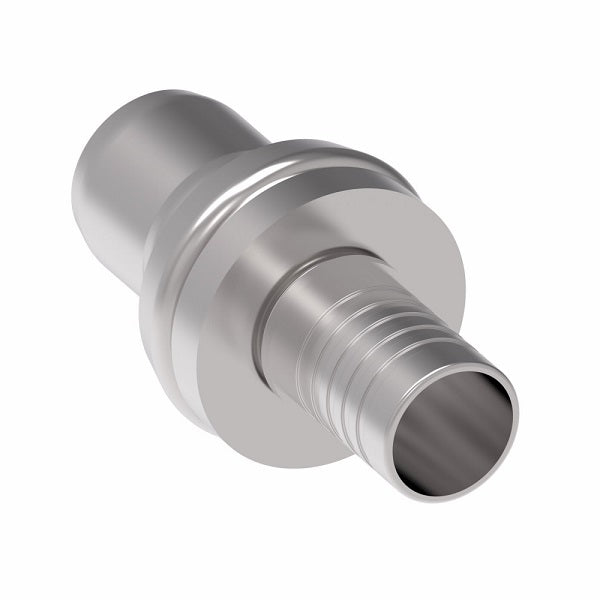

FJ4828-0606S Aeroquip by Danfoss | Nipple Assembly Male STC (Snap to Connect) Hose End (FJ) | For PTFE Hose | -06 Male STC x -06 Hose Barb | Steel

FJ4828-0606S Aeroquip by Danfoss | Nipple Assembly Male STC (Snap to Connect) Hose End (FJ) | For PTFE Hose | -06 Male STC x -06 Hose Barb | Steel

$23.12 - $23.12
$23.12
$23.12 - $23.12
$23.12

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Nipple Assembly for PTFE Hose - Male STC (Snap to Connect) Hose End (FJ) - Straight

For use with 2807 & FC465 Hose and FC3443 & FC3596 Sockets.

(Formerly Eaton Aeroquip)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FJ4828-0606S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male STC, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 2807 Series  |   FC465 Series
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 D1 D2 L1 L2 STC Release Tool
FJ4828-0606S 0.25" 0.71" 1.58" 1.09" FF90213-06
FJ4828-0808S 0.35" 0.91" 2.18" 1.29" FF90213-08
FJ4828-1010S 0.44" 0.94" 2.29" 1.40" FF90213-10
FJ4828-1212S 0.56" 1.26" 2.46" 1.57" FF90213-12
