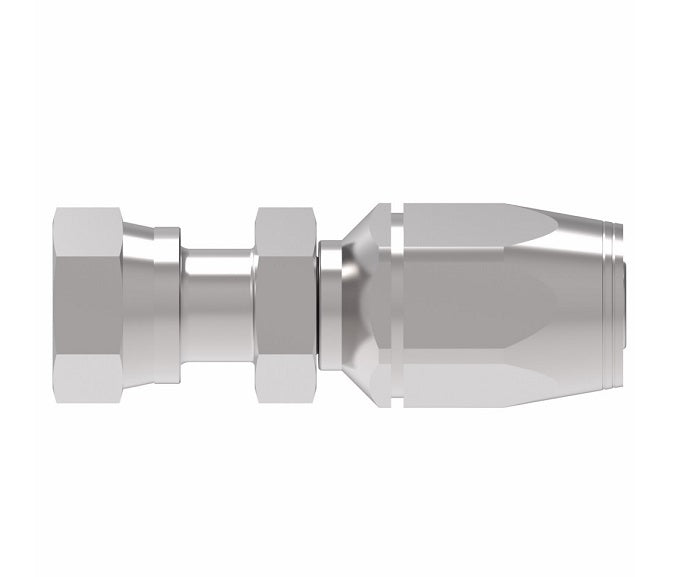

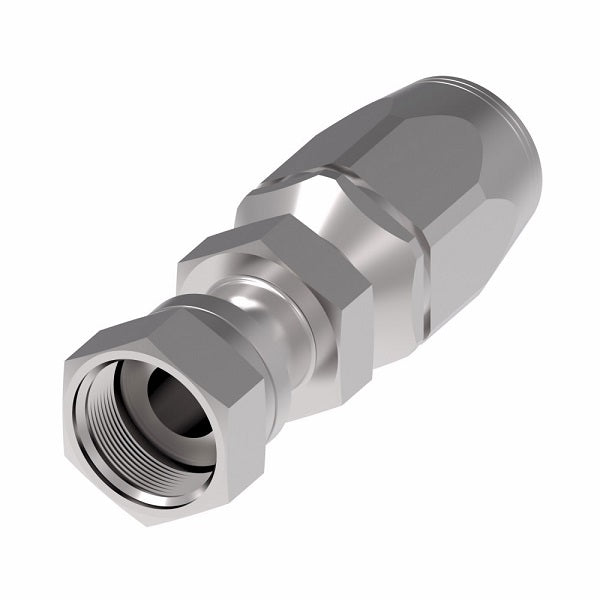

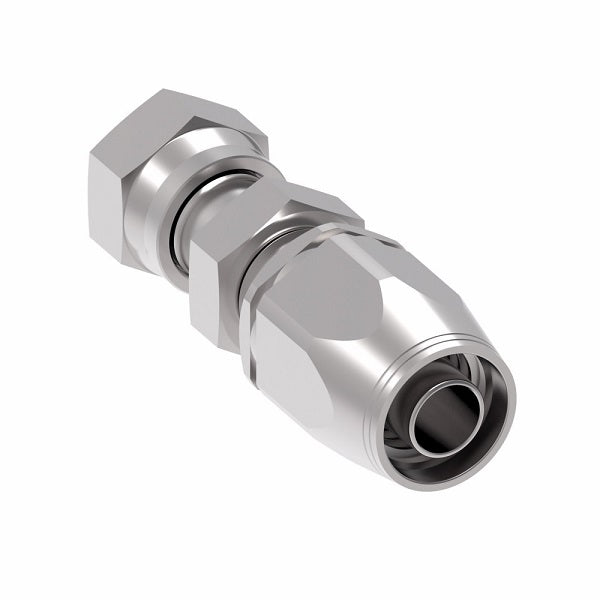

FJ7344-0606S Aeroquip by Danfoss | Female ORS Swivel 100R2 TTC Reusable Hose Fitting | FJ Series | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel

FJ7344-0606S Aeroquip by Danfoss | Female ORS Swivel 100R2 TTC Reusable Hose Fitting | FJ Series | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel

Name: FJ7344-0606S Aeroquip by Danfoss | Female ORS Swivel 100R2 TTC Reusable Hose Fitting | FJ Series | -06 Female O-Ring Face Seal Swivel x -06 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FJ7344-0606S Danfoss
Price: 126.97 USD
Availability: InStock

$126.97 - $126.97

$126.97

$126.97 - $126.97

$126.97

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FJ Series - Female O-Ring Face Seal (ORS) Swivel - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FJ7344-0606S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female O-Ring Face Seal, 3/8in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	GH793 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with GH793 hose ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	"T" Thread	A	D	EØ
FJ7344-0404S	-04	9/16-18	2.76"	1.59"	0.16"
FJ7344-0606S	-06	11/16-16	3.03"	1.69"	0.26"
FJ7344-0808S	-08	13/16-16	3.40"	1.89"	0.36"
