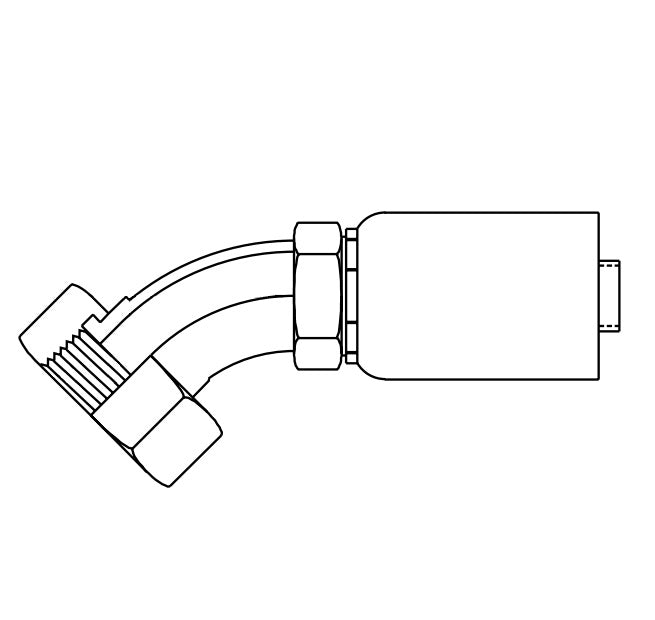

FJ9481-0404S Synflex by Danfoss | Polyon Swage Hose Fitting | 45° Elbow | -04 Female O-Ring Face Seal Swivel x -04 Hose Barb | Carbon Steel

FJ9481-0404S Synflex by Danfoss | Polyon Swage Hose Fitting | 45° Elbow | -04 Female O-Ring Face Seal Swivel x -04 Hose Barb | Carbon Steel

$142.52 - $142.52
$142.52
$142.52 - $142.52
$142.52

Synflex by Danfoss
Polyon Swage Hose Fitting - Female O-Ring Face Seal Swivel - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ9481-0404S Danfoss
Brand: Synflex
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Female O-Ring Face Seal, 1/4in Hose Barb
Material(s): Carbon Steel
Compatible with the following Series: 3130 Series  |   37AL Series  |   3740 Series
Carbon Steel
Part Number 		Terminal End Thread Hose Size A Cut Off
Factor
D		 EØ H Hex 1 Hex 2
Dash Size DN Dash Size mm in mm in mm in mm in in in
FJ9481-0404S -04 9/16 -18 6 -04 58,4mm 2.30" 35,6mm 1.40" 3,8mm 0.15" 10,4mm 0.41" 0.69" 0.62"
FJ9481-0606S -06 11/16 - 16 10 -06 68,6mm 2.70" 32,0mm 1.26" 6,1mm 0.24" 10,9mm 0.43" 0.81" 0.75"
FJ9481-1212S -12 1-3/16-12 19 -12 96,8mm 3.81" 49,8mm 1.96" 14,7mm 0.58" 21,1mm 0.83" 1.38" 1.12"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
