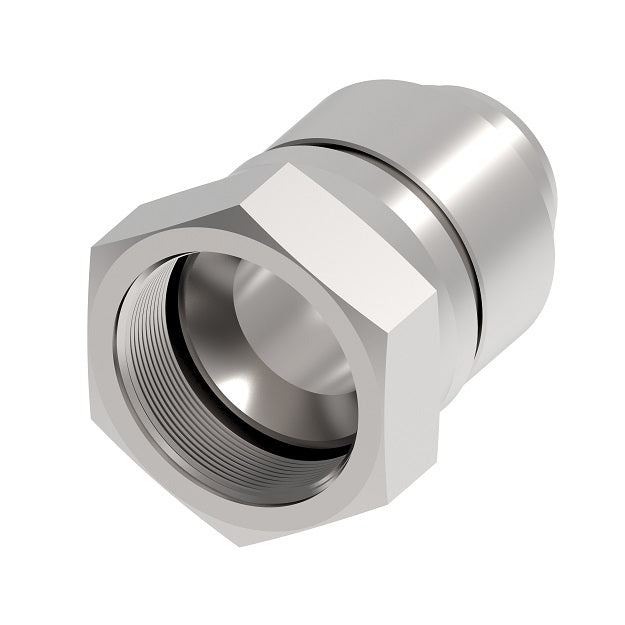

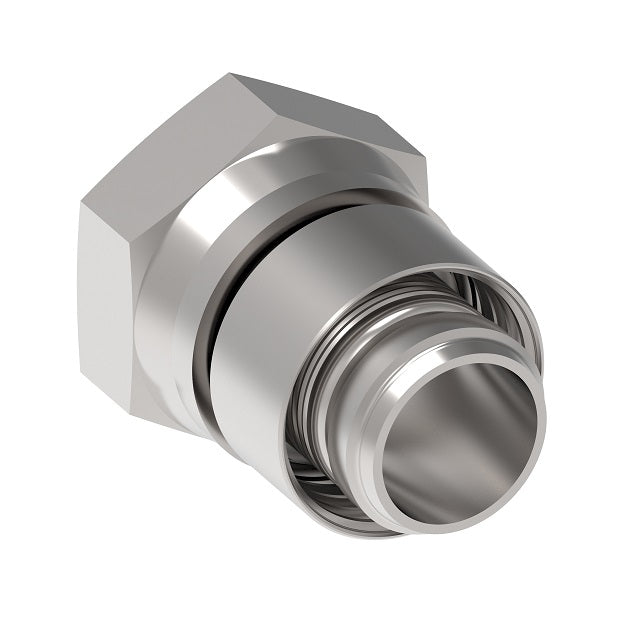

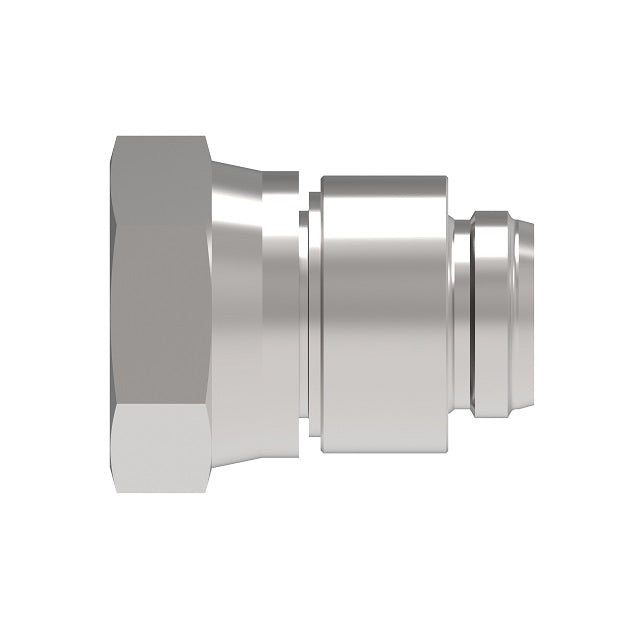

FJ9587-1212-331 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Stainless Steel

FJ9587-1212-331 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Stainless Steel

Name: FJ9587-1212-331 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Stainless Steel
Brand: Danfoss/Eaton
SKU: FJ9587-1212-331 Danfoss
Price: 314.89 USD
Availability: InStock

$314.89 - $314.89

$314.89

$314.89 - $314.89

$314.89

Aeroquip® by Danfoss
Flat Crimp Fitting for PTFE Hose - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FJ9587-1212-331 Danfoss
Brand:	Aeroquip
Ends Configuration:	3/4in Female JIC, 3/4in Hose Barb
Material(s):	Stainless Steel
Compatible with the following Series:	FC363 Series \| FC364 Series \| FC563 Series


Complete Fitting Stainless Steel Part Number	Nipple Assembly Stainless Steel Part Number	Socket Stainless Steel Part Number	Thread	Hose Size	A	D	EØ	Hex 1
FJ9587-0808-331	FJ8587-0808-331	FC1347-08-329	3/4-16	-08	2.52"	1.10"	.38"	.88"
FJ9587-1212-331	FJ8587-1212-331	FC1347-12-329	1-1/16-12	-12	2.55"	1.23"	.61"	1.25"
FJ9587-1616-331	FJ8587-1616-331	FC1347-16-329	1-5/16-12	-16	2.69"	1.37"	.81"	1.50"
FJ9587-2020-331	FJ8587-2020-331	FC1347-20-329	1-5/8-12	-20	2.84"	1.52"	1.05"	2.00"
FJ9587-2424-331	FJ8587-2424-331	FC1347-24-329	1-7/8-12	-24	3.21"	1.67"	1.28"	2.25"
FJ9587-3232-331	FJ8587-3232-331	FC1347-32-329	2-1/2-12	-32	3.50"	1.92"	1.75"	2.88"
