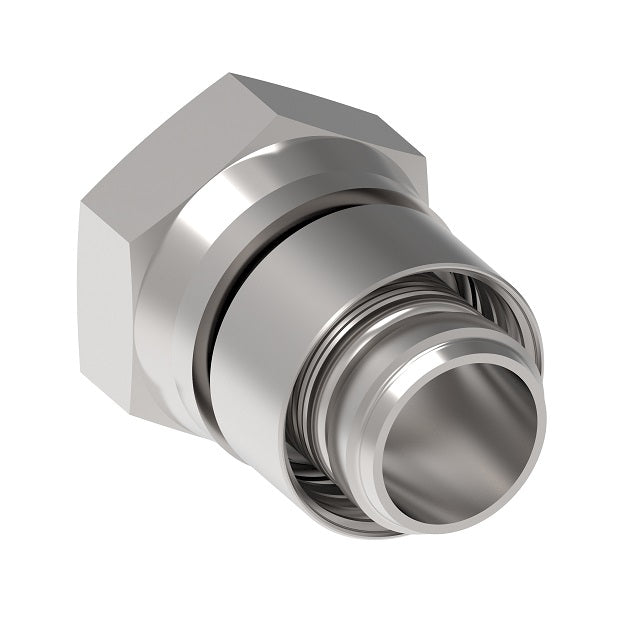

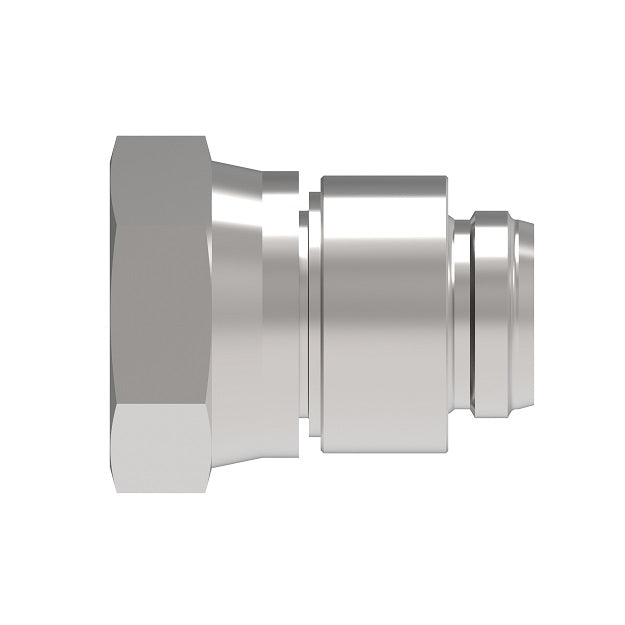

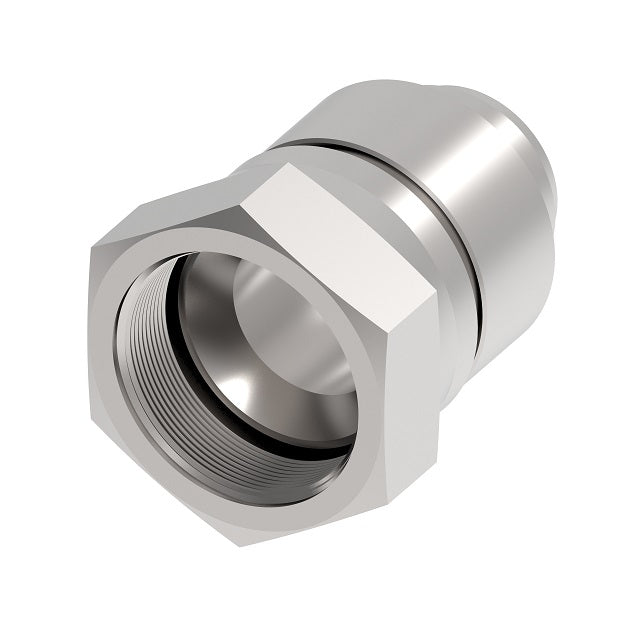

FJ9587-1616-331 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -16 Female 37° JIC Swivel x -16 Hose Barb | Stainless Steel
FJ9587-1616-331 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -16 Female 37° JIC Swivel x -16 Hose Barb | Stainless Steel
FJ9587-1616-331 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -16 Female 37° JIC Swivel x -16 Hose Barb | Stainless Steel
FJ9587-1616-331 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -16 Female 37° JIC Swivel x -16 Hose Barb | Stainless Steel

FJ9587-1616-331 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -16 Female 37° JIC Swivel x -16 Hose Barb | Stainless Steel

$425.46 - $425.46
$425.46
$425.46 - $425.46
$425.46

Aeroquip® by Danfoss
Flat Crimp Fitting for PTFE Hose - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ9587-1616-331 Danfoss
Brand: Aeroquip
Ends Configuration: 1in Female JIC, 1in Hose Barb
Material(s): Stainless Steel
Compatible with the following Series: FC363 Series  |   FC364 Series  |   FC563 Series
Complete Fitting
Stainless Steel
Part Number 		Nipple Assembly
Stainless Steel
Part Number 		Socket
Stainless Steel
Part Number 		Thread Hose Size A D EØ Hex 1
FJ9587-0808-331 FJ8587-0808-331 FC1347-08-329 3/4-16 -08 2.52" 1.10" .38" .88"
FJ9587-1212-331 FJ8587-1212-331 FC1347-12-329 1-1/16-12 -12 2.55" 1.23" .61" 1.25"
FJ9587-1616-331 FJ8587-1616-331 FC1347-16-329 1-5/16-12 -16 2.69" 1.37" .81" 1.50"
FJ9587-2020-331 FJ8587-2020-331 FC1347-20-329 1-5/8-12 -20 2.84" 1.52" 1.05" 2.00"
FJ9587-2424-331 FJ8587-2424-331 FC1347-24-329 1-7/8-12 -24 3.21" 1.67" 1.28" 2.25"
FJ9587-3232-331 FJ8587-3232-331 FC1347-32-329 2-1/2-12 -32 3.50" 1.92" 1.75" 2.88"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
