FJ9732-1616S Aeroquip by Danfoss | Female ORS Swivel 100R2 Skive Style Reusable Hose Fitting | FJ Series | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel

FJ9732-1616S Aeroquip by Danfoss | Female ORS Swivel 100R2 Skive Style Reusable Hose Fitting | FJ Series | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel

Name: FJ9732-1616S Aeroquip by Danfoss | Female ORS Swivel 100R2 Skive Style Reusable Hose Fitting | FJ Series | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FJ9732-1616S Danfoss
Price: 192.06 USD
Availability: InStock

$192.06 - $192.06

$192.06

$192.06 - $192.06

$192.06

Aeroquip® by Danfoss

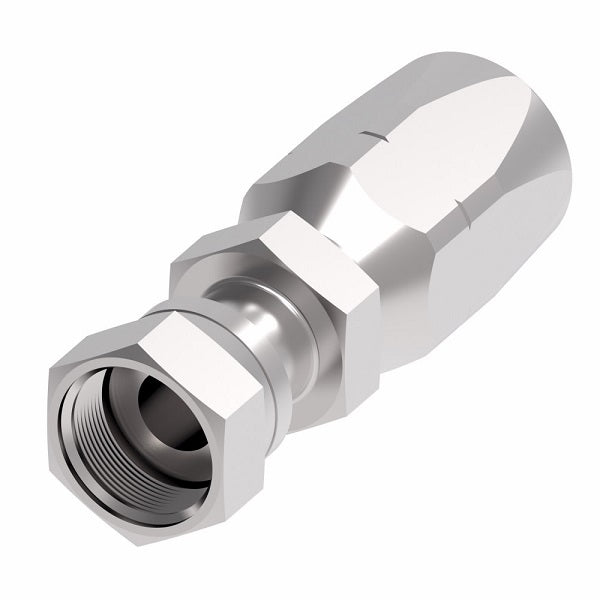

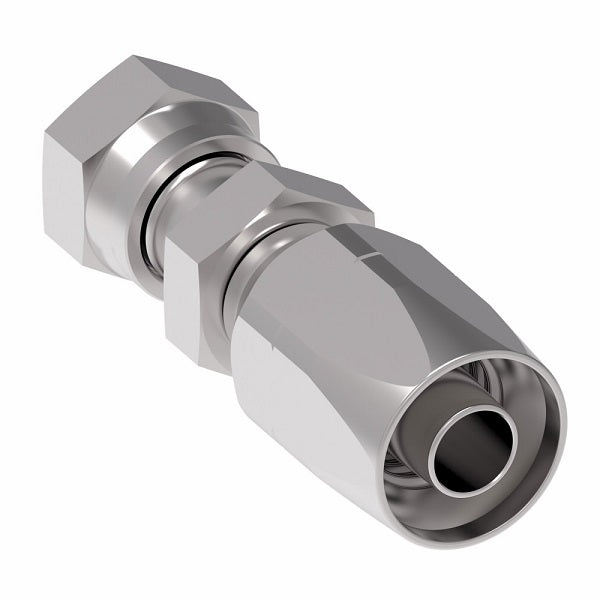

100R2 Skive Style Reusable Hose Fitting - FJ Series - Female O-Ring Face Seal (ORS) Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FJ9732-1616S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1in Female O-Ring Face Seal, 1in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2766 Series \| 2781 Series \| FC195 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with hose: 2766. Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ
FJ9732-0404S	-04	9/16-18	2.75"	1.52"	0.17"
FJ9732-0606S	-06	11/16-16	3.02"	1.55"	0.26"
FJ9732-0808S	-08	13/16-16	3.40"	1.89"	0.39"
FJ9732-1010S	-10	1-14	3.58"	2.03"	0.50"
FJ9732-1212S	-12	1-3/16-12	4.05"	2.18"	0.61"
FJ9732-1616S	-16	1-7/16-12	4.78"	2.73"	0.82"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
