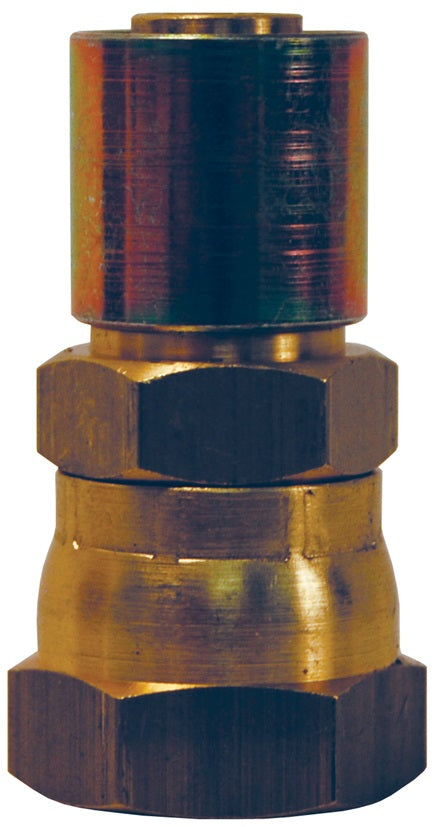

FJB-05-05 by Dixon Valve | Crimp Fitting for PTFE Hose | with Crimp Collar | 5/16" Female JIC Swivel x -05 Hose Size | Brass

Name: FJB-05-05 by Dixon Valve | Crimp Fitting for PTFE Hose | with Crimp Collar | 5/16" Female JIC Swivel x -05 Hose Size | Brass
Brand: Dixon
SKU: FJB-05-05 Dixon
Price: 5.61 USD
Availability: InStock

Save $0.56

$6.17

$6.17 - $6.17

$6.17

$5.61

$5.61 - $5.61

$5.61

Dixon Valve
PTFE Hose Fitting | Nominal Crimp Fitting | Female JIC Swivel

Suitable for conveying chemicals, foods, pharmaceuticals, oils, gas, fuels and steam.

Crimp Collars for all Nominal fittings are included.

Quantity

Specifications for Variant SKU: FJB-05-05 Dixon
Series:	FJB Series
Shape (Orientation):	Straight
Ends Configuration:	5/16in Female JIC, 5/16in Hose Barb
Material(s):	Brass
Special Properties:	Swivel
Compatible with the following Series:	WSB Series \| BSB Series

Use:
For use with nominal smooth bore PTFE hoses.

Carbon Steel Part Number	304 Stainless Steel Part Number	Brass Part Number	Hose Size	Thread Size
FJC-04-04	FJS-04-04	FJB-04-04	-04	1/4" Female JIC Swivel
FJC-05-05	FJS-05-05	FJB-05-05	-05	5/16" Female JIC Swivel
FJC-06-06	FJS-06-06	FJB-06-06	-06	3/8" Female JIC Swivel
FJC-08-08	FJS-08-08	FJB-08-08-	-08	1/2" Female JIC Swivel
FJC-10-10	FJS-10-10	FJB-10-10	-10	5/8" Female JIC Swivel
FJC-12-12	FJS-12-12	FJB-12-12	-12	3/4" Female JIC Swivel
FJC-16-16	FJS-16-16	FJB-16-16	-16	1" Female JIC Swivel
FJC-20Z-20	-	-	-20Z	1-1/4" Female JIC Swivel
