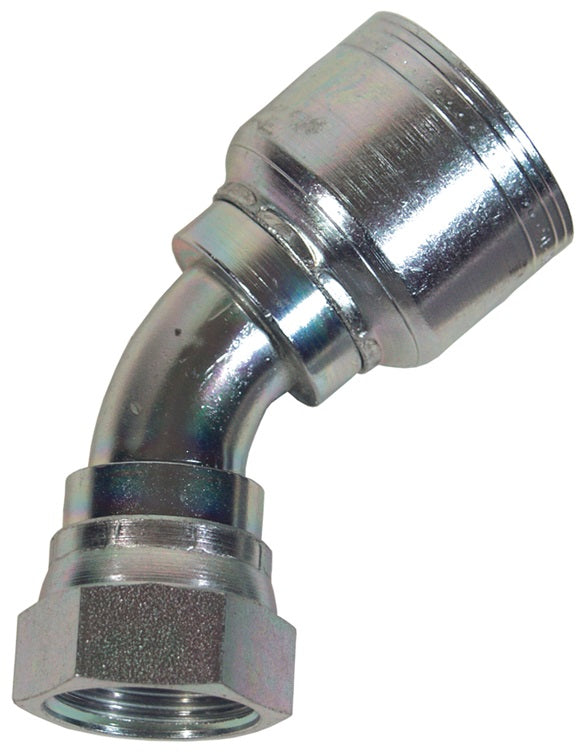

FJC45-12-12 by Dixon Valve | Crimp Fitting for PTFE Hose | with Crimp Collar | 45° Elbow | 3/4" Female JIC x -12 Hose Size | Carbon Steel

Save $22.61

$56.52

$56.52 - $56.52

$56.52

$33.91

$33.91 - $33.91

$33.91

Dixon Valve
PTFE Hose Fitting | Nominal Crimp Fitting | 45° Elbow | Female JIC

Crimp Collars for all Nominal fittings are included.

Specifications for Variant SKU: FJC45-12-12 Dixon
Series:	FJC45 Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Hose Barb, 3/4in Female JIC
Material(s):	Carbon Steel
Compatible with the following Series:	WSB Series \| BSB Series

Use:
For use with nominal smooth bore PTFE hoses.

304 Stainless Steel Part Number	Carbon Steel Part Number	Hose Size	Thread Size
FJS45-03-03	FJC45-03-03	-3	3/16"
FJS45-04-04	FJC45-04-04	-4	1/4"
FJS45-05-05	FJC45-05-05	-5	5/16"
FJS45-06-06	FJC45-06-06	-6	3/8"
-	FJC45-08-08	-8	1/2"
FJS45-10-10	FJC45-10-10	-10	5/8"
-	FJC45-12-12	-12	3/4"
-	FJC45-16-16	-16	1"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
