2.25-DFD-T-25 Flexaust DFD-T (DFDT) 2.25 inch Air Duct Hose - 25ft
2.25-DFD-T-25 Flexaust DFD-T (DFDT) 2.25 inch Air Duct Hose - 25ft
2.25-DFD-T-25 Flexaust DFD-T (DFDT) 2.25 inch Air Duct Hose - 25ft
2.25-DFD-T-25 Flexaust DFD-T (DFDT) 2.25 inch Air Duct Hose - 25ft

2.25-DFD-T-25 by Flexaust | #DFDT225025 | DFD-T Series | Air Duct Hose | 2.25 inch | 25ft

Save $42.83 Save $42.83
$107.08
$107.08 - $107.08
$107.08
$64.25
$64.25 - $64.25
$64.25

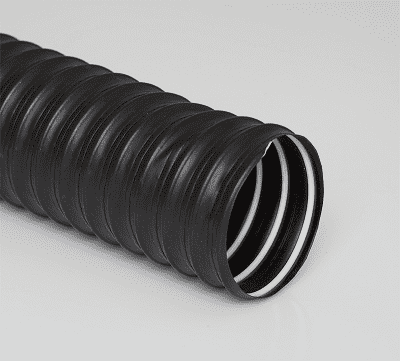

Flexaust Dayflex DFD-T (DFDT) Air Duct Hose Light weight black thermoplastic propylene-ethylene copolymer hose reinforced with an internal polypropylene helix

Package Quantity: 25 FT

Specifications for Variant SKU: 2.25-DFD-T-25 Flexaust | 25 |
Brand: Dayflex
Series: DFD-T
Hose Color(s): Black
Internal Diameter: 2.25in
Tubing Construction: Thermoplastic Propylene-Ethylene Copolymer
Applicable Specs & Approvals: FMVSS 302

SPECIFICATIONS

Applications: Bus Ventilation, Cab Ventilation, Defroster/Heater, Limo A/C Duct, R.V. Manufacturing, Race Car Helmet Ventilation SAE Rating: N/A
Other Ratings: N/A Tube: Light weight black thermoplastic propylene-ethylene copolymer
Reinforcement: Internal polypropylene helix Cover: N/A
Temperature Range: -40 deg. F to 225 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Pliable helix can be formed to fit various applications.
  • Flexible, crush resistant, & compressible.
  • Meets FMVSS 302 flame standards.
  • Great choice for heater/defroster & ventilation applications.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
DFD-T 1in DFD-T 1in 1" N/A 1" 2:1 N/A 11 1 lbs 2 lbs
DFD-T 1.25in DFD-T 1.25in 1.25" N/A 1.5" 2:1 N/A 10 1.5 lbs 3 lbs
DFD-T 1.5in DFD-T 1.5in 1.5" N/A 2" 3:1 N/A 10 2 lbs 4 lbs
DFD-T 1.75in DFD-T 1.75in 1.75" N/A 2.5" 3:1 N/A 10 2.25 lbs 4.5 lbs
DFD-T 2in DFD-T 2in 2" N/A 3" 3:1 N/A 10 2.5 lbs 5 lbs
DFD-T 2.25in DFD-T 2.25in 2.25" N/A 3.5" 3:1 N/A 9 2.75 lbs 5.5 lbs
DFD-T 2.5in DFD-T 2.5in 2.5" N/A 3.75" 3:1 N/A 9 3.25 lbs 6.5 lbs
DFD-T 3in DFD-T 3in 3" N/A 4.25" 3:1 N/A 8 3.5 lbs 7 lbs
DFD-T 4in DFD-T 4in 4" N/A 4.5" 3:1 N/A 3 5.5 lbs 11 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
