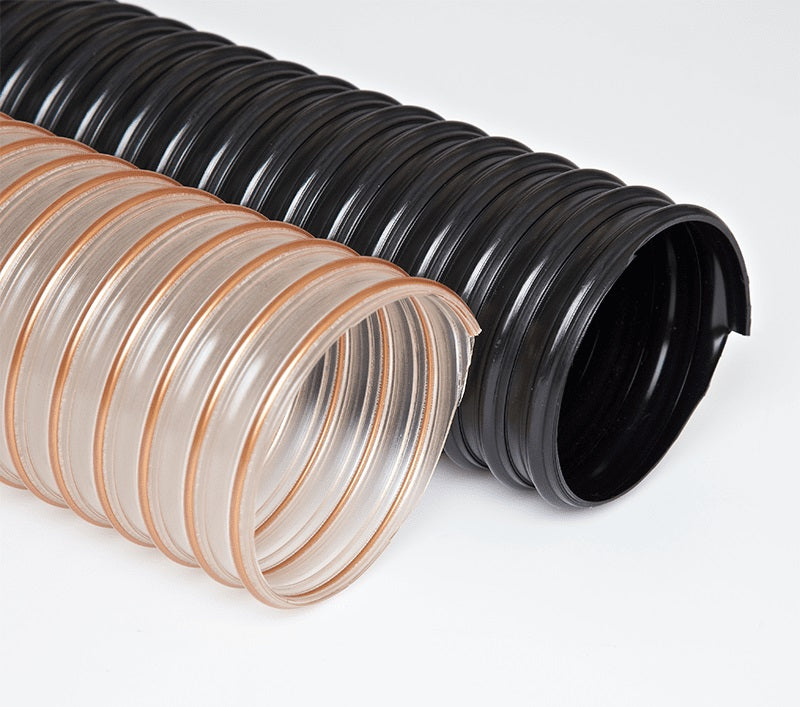

10-Flx-Thane-HD-25 Flexaust Flx-Thane HD 10 inch Material Handling Duct Hose - 25ft

  • $719.33

SPECIFICATIONS

Applications: Agricultural, Concrete Transport, Lawn & Leaf Collection, Fertilizer Broadcasting, Food Grade, Foundry Sand Transfer, Street & Parking Lot Sweepers SAE Rating: N/A
Other Ratings: N/A Tube: Heavy weight clear or black polyurethane
Reinforcement: Bronze coated spring steel wire helix Cover: N/A
Temperature Range: -65 deg. F to 225 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Great abrasion resistance & high tear strength.
  • Superior chemical resistance.
  • Excellent flexibility.
  • Designed for applications with wide temperature ranges.
  • Ideal for severe service applications.
  • Very good low temperature flexibility.
  • Clear is manufactured with FDA acceptable materials.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Flx-Thane HD 2in 2" .035" 2" 2:1 29 32 8.75 lbs
Flx-Thane HD 2.5in 2.5" N/A N/A N/A N/A N/A N/A
Flx-Thane HD 3in 3" .035" 3" 2:1 29 32 13.75 lbs
Flx-Thane HD 3.5in 3.5" N/A N/A N/A N/A N/A N/A
Flx-Thane HD 4in 4" .045" 3.5" 2:1 29 30 12.5 lbs
Flx-Thane HD 5in 5" .040" 4" 2:1 17 30 27.5 lbs
Flx-Thane HD 6in 6" .045" 5" 2:1 15 24 30 lbs
Flx-Thane HD 7in 7" .045" 7" 2:1 12 22 35 lbs
Flx-Thane HD 8in 8" .045" 8" 2:1 9 20 42.5 lbs
Flx-Thane HD 10in 10" .045" 9" 2:1 4 17 47.5 lbs
Flx-Thane HD 12in 12" .045" 11" 2:1 2.5 14 60 lbs
Flx-Thane HD 14in 14" .045" 13" 2:1 3.5 12 80 lbs
Flx-Thane HD 16in 16" .045" 15" 2:1 2.5 11 92.5 lbs
Flx-Thane HD 18in 18" .045" 17" 2:1 1.5 10 102.5 lbs
Flx-Thane HD 20in 20" .045" 19" 2:1 1 9 115 lbs
Flx-Thane HD 24in 24" N/A N/A N/A N/A N/A N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
