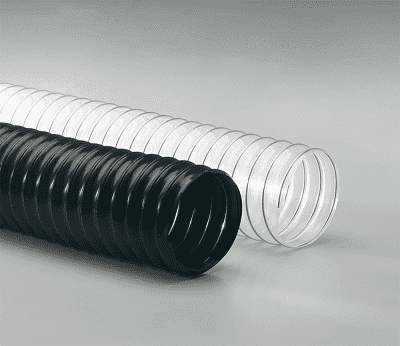

10-Flx-Thane-LD-25 Flexaust Flx-Thane LD 10 inch Air, Fume, and Dust Duct Hose - 25ft

  • $337.33

SPECIFICATIONS

Applications: Aluminum Refractory, Cold Air Supply, Dust Collection, Food Grade, Hull Sanding Equipment, Insulation Blowing & Removal, Oil Mist Extraction, Paint Spray Extraction, Pharmaceutical, Printing, Sheet Metal, Textile Fiber Collection, Ultra Violet Dryers, Vapor Recovery, Woodworking/Furniture Industry SAE Rating: N/A
Other Ratings: N/A Tube: Light weight clear or black polyurethane
Reinforcement: Bronze coated spring steel wire Cover: N/A
Temperature Range: 65 deg. F to 225 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Great compressibility.
  • Great abrasion resistance.
  • Superior chemical resistance.
  • Excellent flexibility.
  • Designed for applications with wide temperature ranges.
  • Clear is manufactured with FDA acceptable materials.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Flx-Thane LD 2in 2" .015" 2" 3:1 29 30 6.25 lbs
Flx-Thane LD 2.5in 2.5" .020" 2.75" 4:1 19 30 8.75 lbs
Flx-Thane LD 3in 3" .020" 3.25" 4:1 29 30 10 lbs
Flx-Thane LD 4in 4" .020" 3.75" 4:1 24 22 12.5 lbs
Flx-Thane LD 5in 5" .020" 4.5" 4:1 13 18 15 lbs
Flx-Thane LD 5.5in 5.5" N/A N/A N/A N/A N/A N/A
Flx-Thane LD 6in 6" .020" 5.25" 4:1 8 15 17.5 lbs
Flx-Thane LD 7in 7" .020" 5.88" 5:1 8 10 20 lbs
Flx-Thane LD 8in 8" .020" 6.5" 5:1 2 7 22.5 lbs
Flx-Thane LD 9in 9" N/A N/A N/A N/A N/A N/A
Flx-Thane LD 10in 10" .020" 7.5" 5:1 2 7 30 lbs
Flx-Thane LD 12in 12" .020" 9" 5:1 1.7 6 35 lbs
Flx-Thane LD 14in 14" .020" 12" 5:1 1.1 5 40 lbs
Flx-Thane LD 16in 16" .020" 14" 5:1 .7 4.6 45 lbs
Flx-Thane LD 18in 18" .020" 16" 5:1 .5 4.1 50 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
