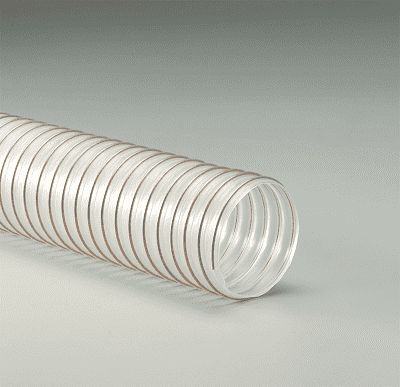

2-Flx-Thane-SE-25 Flexaust #8631020025 Flx-Thane SE 2 inch Air, Dust, and Material Handling Duct Hose - 25ft

  • $190.33

SPECIFICATIONS

Applications: Shipyards, Welding Fume Extraction SAE Rating: N/A
Other Ratings: N/A Tube: Self-extinguishing medium weight clear polyurethane
Reinforcement: Bronze coated spring steel wire helix Cover: N/A
Temperature Range: -65 deg. F to 225 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Halogen-free.
  • Good compressibility.
  • Great abrasion resistance & high tear strength.
  • Superior chemical resistance.
  • Excellent flexibility.
  • Designed for applications with wide temperature ranges.
  • Good low temperature flexibility.
  • Manufactured with flame retardant materials.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
Flx-Thane SE 2in Flx-Thane SE 2in 2" .030" 2" 3:1 29 30 6.25 lbs 12.5 lbs
Flx-Thane SE 2.5in Flx-Thane SE 2.5in 2.5" .030" 2.5" 3:1 29 30 8 lbs 16 lbs
Flx-Thane SE 3in Flx-Thane SE 3in 3" .030" 3" 3:1 29 29 10 lbs 20 lbs
Flx-Thane SE 4in Flx-Thane SE 4in 4" .030" 4" 3:1 29 25 17.5 lbs 35 lbs
Flx-Thane SE 5in Flx-Thane SE 5in 5" .030" 5" 3:1 17 22 22.5 lbs 45 lbs
Flx-Thane SE 6in Flx-Thane SE 6in 6" .030" 6" 3:1 15 19 25 lbs 50 lbs
Flx-Thane SE 8in Flx-Thane SE 8in 8" .030" 8" 3:1 9 14 37.5 lbs 75 lbs
Flx-Thane SE 10in Flx-Thane SE 10in 10" .030" 8" 3:1 4 11 40 lbs 80 lbs
Flx-Thane SE 12in Flx-Thane SE 12in 12" .030" 10" 3:1 2.2 10 50 lbs 100 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
