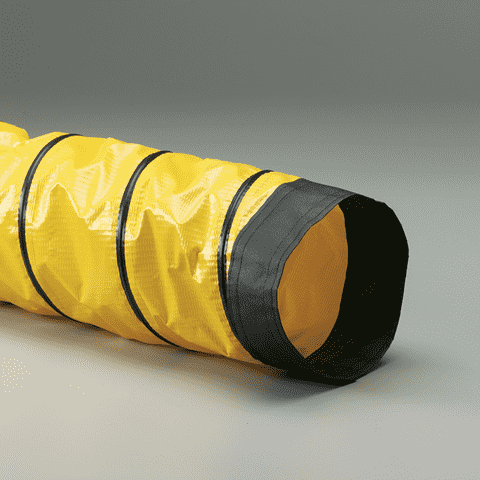

24-FSP-5-25 Flexaust #4102400025 FSP-5 (FSP5) 24 inch Air Duct Hose - 25ft

  • $560.67

SPECIFICATIONS

Applications: A/C Ventilation, Chiller, Dehumidification, Fans & Blowers, Flame Retardant, Function Tent HVAC, HEPA, Humidity Control, HVAC, Ventilation SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply yellow PVC vinyl coated polyester fabric
Reinforcement: Spring steel wire helix & black external PVC wearstrip Cover: N/A
Temperature Range: -20 deg. F to 180 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Lightweight duct for blower applications.
  • Great compressibility with an 11:1 compressibility ratio.
  • Retractability allows for convenient storage & easy transport in a fraction of its fully extended length.
  • Wearstrip offers additional external abrasion & drag resistance.
  • Listed as UL 94V-0 flame retardant.
  • Manufactured with materials that meet NFPA 701 standards.
  • Shown with optional cuff.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
FSP-5 4in 4" N/A 2" 10:1 9 13 6.25 lbs
FSP-5 5in 5" N/A 3.1" 10:1 7 12 8 lbs
FSP-5 6in 6" N/A 3" 11:1 3.5 11 7.5 lbs
FSP-5 8in 8" N/A 4.5" 11:1 2.8 8 11.25 lbs
FSP-5 10in 10" N/A 5.5" 11:1 2 7 15 lbs
FSP-5 12in 12" N/A 6.75" 11:1 1 5 17.5 lbs
FSP-5 14in 14" N/A 8" 11:1 .75 5 20 lbs
FSP-5 16in 16" N/A 9" 11:1 .5 5 22.5 lbs
FSP-5 18in 18" N/A 10" 11:1 .4 4 25 lbs
FSP-5 20in 20" N/A 11" 11:1 .3 3 27.5 lbs
FSP-5 22in 22" N/A 12.5" 11:1 .2 3 32.5 lbs
FSP-5 24in 24" N/A 13.5" 11:1 .1 2 35 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
