4-FSP-5-25 Flexaust FSP-5 (FSP5) 4 inch Air Duct Hose - 25ft
4-FSP-5-25 Flexaust FSP-5 (FSP5) 4 inch Air Duct Hose - 25ft
4-FSP-5-25 Flexaust FSP-5 (FSP5) 4 inch Air Duct Hose - 25ft
4-FSP-5-25 Flexaust FSP-5 (FSP5) 4 inch Air Duct Hose - 25ft

4-FSP-5-25 by Flexaust | #4100400025 | FSP-5 Series | Air Duct Hose | 4 inch | 25ft

Save $18.19 Save $18.19
$181.86
$181.86 - $181.86
$181.86
$163.67
$163.67 - $163.67
$163.67

Flexaust Springflex FSP-5 (FSP5) Air Duct Hose

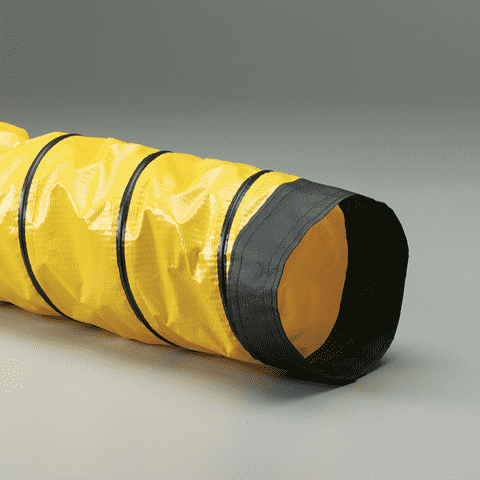

Single-ply yellow PVC vinyl coated polyester fabric hose reinforced with a spring steel wire helix & black external PVC wearstrip.

Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.

Package Quantity: 25 FT

Specifications for Variant SKU: 4-FSP-5-25 Flexaust | 25 |
Brand: Springflex
Series: FSP-5
Hose Color(s): Black & Yellow
Internal Diameter: 4in
Tubing Construction: PVC Coated Polyester
Springflex End Finishes Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.
Sewn Cuff Standard/Enclosed
Belted Cuff		 Funnel Cuff Belt Loop & Pull Tabs Wire Rope/Nylon Ring Sto-Sack

SPECIFICATIONS

Applications: A/C Ventilation, Chiller, Dehumidification, Fans & Blowers, Flame Retardant, Function Tent HVAC, HEPA, Humidity Control, HVAC, Ventilation SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply yellow PVC vinyl coated polyester fabric
Reinforcement: Spring steel wire helix & black external PVC wearstrip Cover: N/A
Temperature Range: -20 deg. F to 180 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Lightweight duct for blower applications.
  • Great compressibility with an 11:1 compressibility ratio.
  • Retractability allows for convenient storage & easy transport in a fraction of its fully extended length.
  • Wearstrip offers additional external abrasion & drag resistance.
  • Listed as UL 94V-0 flame retardant.
  • Manufactured with materials that meet NFPA 701 standards.
  • Shown with optional cuff.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
FSP-5 4in 4" N/A 2" 10:1 9 13 6.25 lbs
FSP-5 5in 5" N/A 3.1" 10:1 7 12 8 lbs
FSP-5 6in 6" N/A 3" 11:1 3.5 11 7.5 lbs
FSP-5 8in 8" N/A 4.5" 11:1 2.8 8 11.25 lbs
FSP-5 10in 10" N/A 5.5" 11:1 2 7 15 lbs
FSP-5 12in 12" N/A 6.75" 11:1 1 5 17.5 lbs
FSP-5 14in 14" N/A 8" 11:1 .75 5 20 lbs
FSP-5 16in 16" N/A 9" 11:1 .5 5 22.5 lbs
FSP-5 18in 18" N/A 10" 11:1 .4 4 25 lbs
FSP-5 20in 20" N/A 11" 11:1 .3 3 27.5 lbs
FSP-5 22in 22" N/A 12.5" 11:1 .2 3 32.5 lbs
FSP-5 24in 24" N/A 13.5" 11:1 .1 2 35 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
