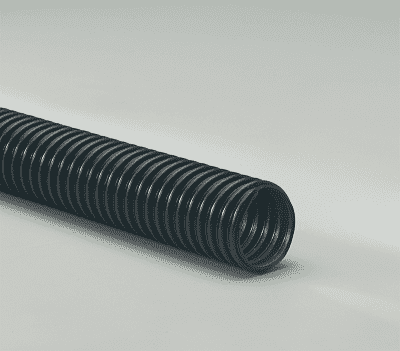

4-GPE-25 Flexaust #6640001025 GPE 4 inch Air and Fume Duct Hose - 25ft

  • $58.00

SPECIFICATIONS

Applications: A/C Ventilation, Bilge Pumping, Bus Ventilation, Cab Ventilation, Circuit Board Cooling, Electronic Panel Cooling, Limo A/C Duct, Pipe Organs, Stereo Speakers SAE Rating: N/A
Other Ratings: N/A Tube: Light weight black polyethylene
Reinforcement: Integral polyethylene helix Cover: N/A
Temperature Range: -40 deg. F to 140 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Suited for low pressure air movement & fume extraction.
  • Excellent for light vacuum applications.
  • Light weight & very flexible.
  • Economical choice for woodworking & dust collection applications.
  • Moderate abrasion resistance.
  • Crush resistant.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
GPE 2in GPE 2in 2" N/A 2.5" N/A 29 19 4.5 lbs 9 lbs
GPE 2.5in GPE 2.5in 2.5" N/A 3" N/A 16 11 5.5 lbs 11 lbs
GPE 3in GPE 3in 3" N/A 4" N/A 10 11 6.75 lbs 13.5 lbs
GPE 4in GPE 4in 4" N/A 7" N/A 8 10 9 lbs 18 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
