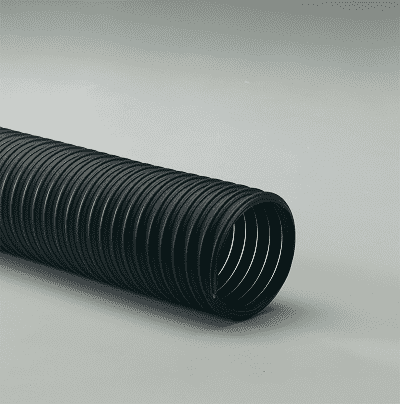

6-HT-25 Flexaust #8511060025 HT 6 inch Material Handling Duct Hose - 25ft

  • $246.67

SPECIFICATIONS

Applications: Foundry Sand Transfer, Granule Transport, Hull Sanding Equipment, Ozone, Peat Moss Vacuum, Sand & Gravel Suction, Street & Parking Lot Sweepers, Wave Pool Blowers SAE Rating: N/A
Other Ratings: N/A Tube: Heavy weight black thermoplastic rubber
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: -60 deg. F to 275 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Suitable for more demanding positive & negative pressure applications.
  • Designed for applications with wide temperature ranges.
  • Great moisture & UV resistance.
  • Excellent chemical resistance.
  • Smooth interior assures minimal friction loss & efficient air flow.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
HT 1.5in HT 1.5in 1.5" .035" 2" 2:1 29 30 6.75 lbs 35 lbs
HT 2in HT 2in 2" .035" 3.29" 2:1 29 24 8.5 lbs 17 lbs
HT 2.5in HT 2.5in 2.5" .035" 3.77" 2:1 29 19 9 lbs 18 lbs
HT 3in HT 3in 3" .035" 4.25" 2:1 29 16 12.5 lbs 25 lbs
HT 4in HT 4in 4" .045" 4.75" 2:1 29 12 18 lbs 36 lbs
HT 5in HT 5in 5" .045" 5" 2:1 16 10 22.25 lbs 44.5 lbs
HT 6in HT 6in 6" .045" 5.25" 3:1 8.3 9 26.25 lbs 52.5 lbs
HT 8in HT 8in 8" .054" 6.9" 3:1 3.4 7 35 lbs 70 lbs
HT 10in HT 10in 10" .054" 8" 3:1 3.4 6 53 lbs 106 lbs
HT 12in HT 12in 12" .054" 10 3:1 2 5.5 62.5 lbs 125 lbs
HT 14in HT 14in 14" .054" 12" 3:1 .72 5.2 67.5 lbs 135 lbs
HT 16in HT 16in 16" .054" 14" 3:1 .5 4.6 75 lbs 150 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
