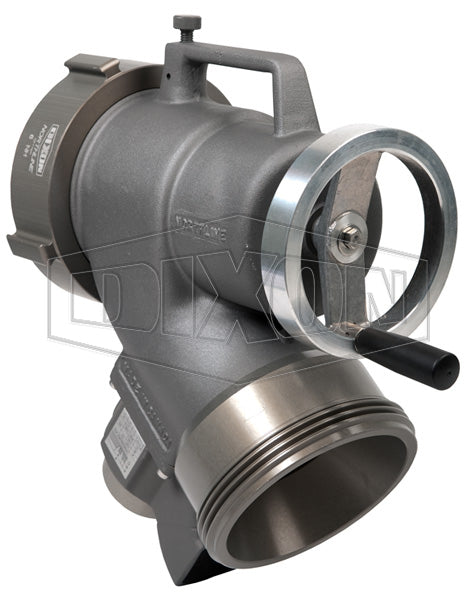

FMGR50F45F Dixon Aluminum Alloy Piston Intake Relief Valve - 5" Male NST(NH) x Two 4-1/2" Female NST(NH) Swivel Ends

FMGR50F45F Dixon Aluminum Alloy Piston Intake Relief Valve - 5" Male NST(NH) x Two 4-1/2" Female NST(NH) Swivel Ends

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Fire Fittings
Piston Intake Relief Valve

Permits safe controlled flow to the intake pump and can also be used to draft.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FMGR50F45F Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 5in Male NST, 4-1/2in Female NST, 4-1/2in Female NST, Some Ends Match
Material(s): Aluminum
Features:
  • Standard with a 30° elbow (permitting smoother water flow), adjustable relief valve, retractable knob on hand wheel and air bleed off.
  • 9 easy turns open and close the valve.
  • 280 PSI at 70°F (21°C), without relief valve.
  • 4-1/2" minimum waterway.
  • Finish anodized throughout - minimum thickness 0.001". (Aluminum Alloy, 356-T6)
  • Relief valve - double spring, cartridge type, adjustable from 50 to 200 PSI.
Part Number Inlet Outlet Length Width Height
Storz x Female NST(NH) Swivel
FSGR440F 4" 4" 12" 8" 17"
FSGR445F 4" 4-1/2" 12" 8" 17"
FSGR450F 4" 5" 12" 8" 17"
FSGR460F 4" 6" 12" 8" 17"
FSGR540F 5" 4" 12" 8" 17"
FSGR550F 5" 5" 12" 8" 17"
FSGR560F 5" 6" 12" 8" 17"
Male NST(NH) x Two Female NST(NH) Swivels
FMGR40F40F 4" 4", 4" 12" 8" 17"
FMGR40F45F 4" 4-1/2", 4-1/2" 12" 8" 17"
FMGR40F50F 4" 5", 5" 12" 8" 17"
FMGR40F60F 4" 6", 6" 12" 8" 17"
FMGR45F40F 4-1/2" 4", 4" 12" 8" 17"
FMGR45F45F 4-1/2" 4-1/2", 4-1/2" 12" 8" 17"
FMGR45F50F 4-1/2" 5", 5" 12" 8" 17"
FMGR45F60F 4-1/2" 6", 6" 12" 8" 17"
FMGR50F40F 5" 4", 4" 12" 8" 17"
FMGR50F45F 5" 4-1/2", 4-1/2" 12" 8" 17"
FMGR50F50F 5" 5", 5" 12" 8" 17"
FMGR50F60F 5" 6", 6" 12" 8" 17"
FMGR60F60F 6" 6", 6" 12" 8" 17"
Replacement Parts
Part Number Description Weight
PV-HDWHL Complete handwheel for piston valve 1.5890
PV-KNOB Retractable knob for piston valve handwheel 0.2500
