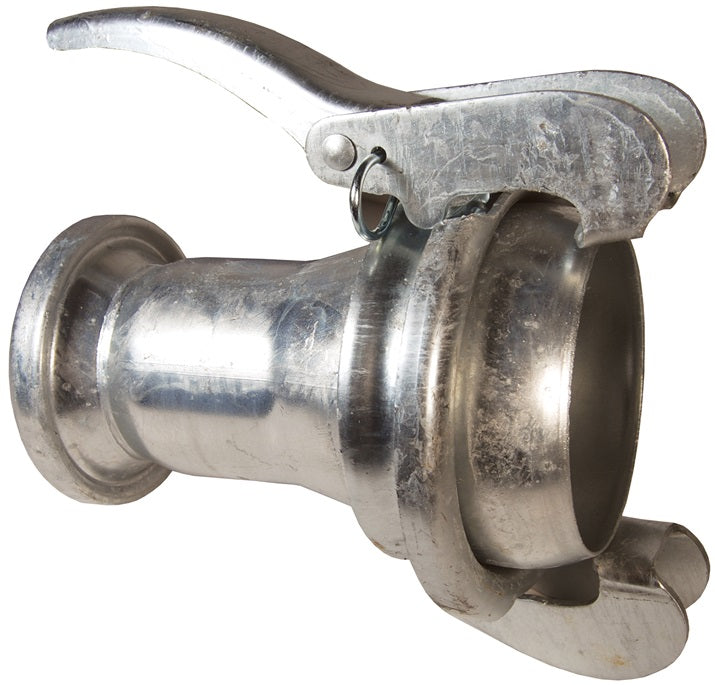

FMI31946 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | Increaser | 4" Female Size x 6" Male Size | Galvanized Steel

Save $107.47 Save $107.47
Original price $268.68
Original price $268.68 - Original price $268.68
Original price $268.68
Current price $161.21
$161.21 - $161.21
Current price $161.21

Dixon Valve
Type B (Bauer Style) Quick Connect Fitting | Increaser | Male x Female

Used primarily on irrigation and suction lines.


Specifications for Variant SKU: FMI31946 Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Female Bauer - Type B, 6in Male Bauer - Type B
Material(s): Galvanized Steel
Features:
  • Bauer style locks on the male side.
  • Has a double pin locking lever for smooth closing action.
  • Equipped with a safety pin to prevent accidental openings.
Materials:
  • Hot dipped, galvanized
  • Gasket included
Safety Notes:
  • These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.
Type B (Bauer-Lock) | Increaser | Male x Female
Part Number Size
FMI31946 4" 6"
FMI31968 6" 8"
FMI319810 8" 10"
FMI3191012* 10" 12"

*10" and 12" supplied with ACB304 lever assist bar
