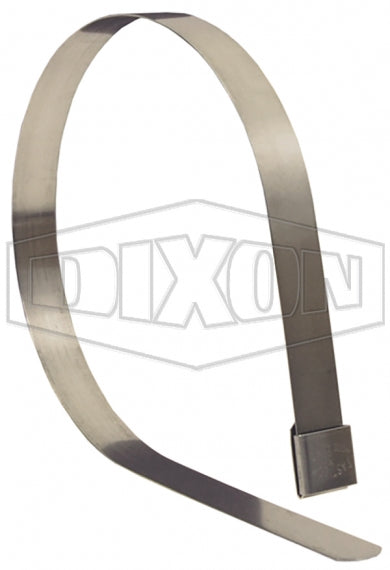

FO48 by Dixon Valve | FO-Series | Open End Center Punch Band Clamp | 5/8" Band Width | 12" Clamp ID | Galvanized Steel Band & Buckle

FO48 by Dixon Valve | FO-Series | Open End Center Punch Band Clamp | 5/8" Band Width | 12" Clamp ID | Galvanized Steel Band & Buckle | Box of 25

Save $15.50 Save $15.50
$139.50
$139.50 - $139.50
$139.50
$124.00
$124.00 - $124.00
$124.00

Dixon Valve
Open End Center Punch Band Clamps | FO-Series


Package Quantity: 25 EA

Specifications for Variant SKU: FO48 Dixon | 25 |
Series: FO-Series
Material(s): Galvanized Steel
Clamp Thickness: 0.31
Clamp Width: 0.625
Maximum Clamp I.D.: 12
Installation Tools:
  • Install with center punch tools: F1 F38, F40, and F100.
  • Other manufacturers' punch style tools may also be used.
Materials:
  • On stainless clamps, bands are 300-series stainless steel, buckles are 302-series stainless steel.
Part Number Material Band Width Clamp ID Band Thickness
FOS3 Stainless Steel 3/8" 13/16" .020"
FOS311 Stainless Steel 3/8" 1-3/8" .020"
FOS316 Stainless Steel 3/8" 2" .020"
FOS325 Stainless Steel 3/8" 3-1/8" .020"
FOS8 Stainless Steel 5/8" 2" .022"
FOS10 Stainless Steel 5/8" 2-1/2" .022"
FOS12 Stainless Steel 5/8" 3" .022"
FOS14 Stainless Steel 5/8" 3-1/2" .022"
FOS16 Stainless Steel 5/8" 4" .022"
FOS18 Stainless Steel 5/8" 4-1/2" .022"
FOS20 Stainless Steel 5/8" 5" .022"
FOS24 Stainless Steel 5/8" 6" .022"
FOS28 Stainless Steel 5/8" 7" .022"
FOS32 Stainless Steel 5/8" 8" .022"

FO3 Galvanized Steel 3/8" 13/16" .025"
FO311 Galvanized Steel 3/8" 1-3/8" .025"
FO316 Galvanized Steel 3/8" 2" .025"
FO325 Galvanized Steel 3/8" 3-1/8" .025"
FO8 Galvanized Steel 5/8" 2" .025"
FO10 Galvanized Steel 5/8" 2-1/2" .025"
FO12 Galvanized Steel 5/8" 3" .031"
FO14 Galvanized Steel 5/8" 3-1/2" .031"
FO16 Galvanized Steel 5/8" 4" .031"
FO18 Galvanized Steel 5/8" 4-1/2" .031"
FO20 Galvanized Steel 5/8" 5" .031"
FO24 Galvanized Steel 5/8" 6" .031"
FO28 Galvanized Steel 5/8" 7" .031"
FO32 Galvanized Steel 5/8" 8" .031"
FO36 Galvanized Steel 5/8" 9" .031"
FO40 Galvanized Steel 5/8" 10" .031"
FO48 Galvanized Steel 5/8" 12" .031"
FO56 Galvanized Steel 5/8" 14" .031"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
