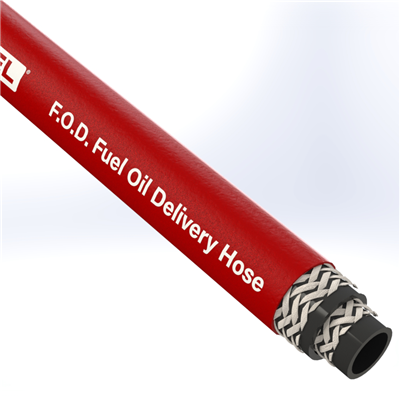

FOD-16-300R- by Texcel | TEX-F.O.D. Series | Fuel Oil Delivery Hose | 1" Hose ID | 250 PSI | Red

$9.30 - $2,751.62

$9.30

$6.64

$6.64 - $1,965.44

$6.64

Texcel
TEX-F.O.D. Series | Fuel Oil Delivery Hose

Quantity

Specifications for Variant SKU: FOD-16-100- Texcel \| 100 \|
Series:	TEX-F.O.D. Series
Hose Color(s):	Red
Internal Diameter:	1in
Outer Diameter:	1.5in
Tubing Construction:	Nitrile
Cover Construction:	Nitrile

Technical Data:
Description:	Designed for the transfer and delivery of fuels, oils, kerosene, diesel and other petroleum-based products for home, commercial, marine and industrial service. Its braided synthetic reinforcement allows for extreme flexibility, reduced twisting and ease of handling, while maintaining kink resistance. Drivers will prefer this hose because of its static conductive tube, abrasion and oil resistance.	Tube:	Black, NBR (ARPM Class A)
Cover:	Black, NBR (ARPM Class A)	Reinforcement:	2 braided polyester cords
Safety Factor:	4:1	Temperature:	-40°F to +180°F
Branding:	TEXCEL F.Hose OD Fuel Oil Delivery Hose - 250PSI WP LOT (white ink letters)

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Lbs./ft
FOD-16-300R	1"	1-32/64"	250 psi	0.65 lbs
FOD-20-175	1-1/4"	1-51/64"	250 psi	0.87 lbs
FOD-22-175	1-3/8"	1-56/64"	250 psi	0.91 lbs
FOD-24-175	1-1/2"	2-6/64"	250 psi	1.12 lbs
FOD-32-100	2"	2-41/64"	200 psi	1.38 lbs
