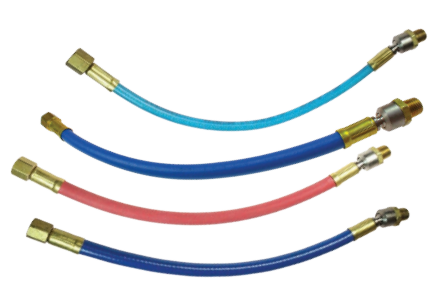

FP06124BS by Coilhose | Lead-In Hose | 3/8" Hose ID | 1/4" Female NPT Thread x 1/4" Male Ball Swivel | Blue | Flexeel | 12" Length

Save $2.08

$18.75

$18.75 - $18.75

$18.75

$16.67

$16.67 - $16.67

$16.67

Coilhose Pneumatics - Straight Hose - Ball Swivel Lead-In Hose

Quantity

Specifications for Variant SKU: FP06124BS Coilhose
Brand:	FLEXEEL
Hose Color(s):	Blue
Material(s):	Polyurethane
Special Properties:	Swivel

Overview:
A Ball Swivel Lead-In Hose helps eliminate stress and wear points caused by bending and pulling. Additionally, when used between the air tool and coupler, a lead-in hose will extend the life of the coupler by acting as a shock absorber and protecting the coupler against tool vibration. It also provides an easier and wider range of motion, reducing worker fatigue while increasing productivity. The end result is a safer and more economical hose assembly. Fittings are male ball swivel and female rigid. FLEXEEL: Flexeel Lead-Ins are composed of lightweight, reinforced polyurethane hose. These lead-ins are designed to isolate high-vibration tools such as impact guns and air hammers from couplers. The reinforced polyurethane composition withstands oils, abrasion, and kinking. Neoprene: Neoprene Lead-Ins are constructed of oil-resistant neoprene rubber hose. Installing a lead-in will isolate high-vibration tools such as impact guns and air hammers from couplers, extending their life. Red Rubber: Rubber Lead-Ins are constructed of EPDM rubber hose. Installing a lead-in will isolate high-vibration tools such as impact guns and air hammers from couplers, extending their life. Thermoplastic: Thermoplastic Lead-Ins are composed of reinforced PVC. Installing a lead-in will isolate high-vibration tools such as impact guns and air hammers from couplers, extending their life. Thermoplastic PVC provides increased working pressure and oil resistance.
Features:
Shock absorbing whip hose. Ball swivel Fitting Increases User's Range of Motion & Comfort Maximum working pressure: FLEXEEL - 200 PSI Neoprene - 300 PSI Red Rubber - 250 PSI Thermoplastic - 300 PSI Composed of Thermoplastic Hose Made in USA

Part No. FLEXEEL	Part No. Neoprene	Part No. Red Rubber	Part No. Thermoplastic	Hose ID	Fitting	Hose Length
FP0412BS	RP0412BS	HP0412BS	VP0412BS	1/4"	1/4" FPT x 1/4" Male Ball Swivel	12"
FP0418BS	RP0418BS	HP0418BS	VP0418BS	1/4"	1/4" FPT x 1/4" Male Ball Swivel	18"
FP0424BS	RP0424BS	HP0424BS	VP0424BS	1/4"	1/4" FPT x 1/4" Male Ball Swivel	24"
FP0430BS	RP0430BS	HP0430BS	VP0430BS	1/4"	1/4" FPT x 1/4" Male Ball Swivel	30"
FP0436BS	RP0436BS	HP0436BS	VP0436BS	1/4"	1/4" FPT x 1/4" Male Ball Swivel	36"
FP0460BS	RP0460BS	HP0460BS	VP0460BS	1/4"	1/4" FPT x 1/4" Male Ball Swivel	60"

FP0512BS	RP0512BS	HP0512BS	-	5/16"	1/4" FPT x 1/4" Male Ball Swivel	12"
FP0518BS	RP0518BS	HP0518BS	-	5/16"	1/4" FPT x 1/4" Male Ball Swivel	18"
FP0524BS	RP0524BS	HP0524BS	-	5/16"	1/4" FPT x 1/4" Male Ball Swivel	24"
FP0530BS	RP0530BS	HP0530BS	-	5/16"	1/4" FPT x 1/4" Male Ball Swivel	30"
FP0536BS	RP0536BS	HP0536BS	-	5/16"	1/4" FPT x 1/4" Male Ball Swivel	36"
FP0560BS	RP0560BS	-	-	5/16"	1/4" FPT x 1/4" Male Ball Swivel	60"

FP06124BS	RP06124BS	HP06124BS	VP06124BS	3/8"	1/4" FPT x 1/4" Male Ball Swivel	12"
FP06184BS	RP06184BS	HP06184BS	VP06184BS	3/8"	1/4" FPT x 1/4" Male Ball Swivel	18"
FP06244BS	RP06244BS	HP06244BS	VP06244BS	3/8"	1/4" FPT x 1/4" Male Ball Swivel	24"
FP06304BS	RP06304BS	HP06304BS	VP06304BS	3/8"	1/4" FPT x 1/4" Male Ball Swivel	30"
FP06364BS	RP06364BS	HP06364BS	VP06364BS	3/8"	1/4" FPT x 1/4" Male Ball Swivel	36"
FP06604BS	RP06604BS	HP06604BS	VP06604BS	3/8"	1/4" FPT x 1/4" Male Ball Swivel	60"
FP06724BS	RP06724BS	HP06724BS	VP06724BS	3/8"	1/4" FPT x 1/4" Male Ball Swivel	72"
