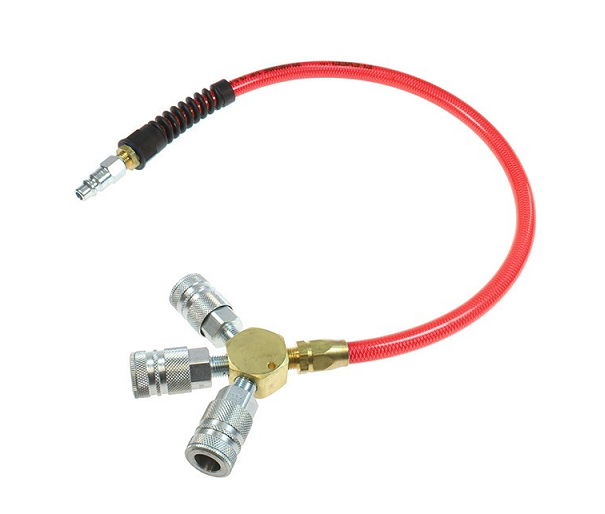

FP0636C-58CTR by Coilhose | Flexeel Pigtail Manifold | 3/8" Industrial Interchange | Trans Red | Polyurethane | 36ft

Save $77.46

$193.65

$193.65 - $193.65

$193.65

$116.19

$116.19 - $116.19

$116.19

Coilhose Pneumatics - Straight Hose - Pigtail Manifolds

Specifications for Variant SKU: FP0636C-58CTR Coilhose
Brand:	FLEXEEL
Hose Color(s):	Red
Material(s):	Polyurethane

Overview:
Directly connect to a compressor and split to three separate connections with the Flexeel Pigtail Manifold. These manifolds feature a short length of Flexeel Polyurethane Hose with a flat hex manifold and multiple high quality couplers. Takes stress off of the main connection point, and allows up to three users to share a compressor.
Features:
Eliminates strain at the main connection point Mounting hole allows attachment to beams Constructed of Polyurethane Flexeel Features Reusable Brass Fittings Contains heavy-duty components: Flexeel whip hose, solid brass Flat Hex manifold, 3 six-ball couplers Made in USA

Part No. Blue	Part No. Red	Part No. Yellow	Length	Coupler Connection
FP0624C-15X	FP0624C-15XTR	FP0624C-15XTY	24"	1/4" 6 Ball Industrial
FP0624C-16X	FP0624C-16XTR	-	24"	1/4" 6 Ball Automotive
FP0636C-15X	FP0636C-15XTR	-	36"	1/4" 6 Ball Industrial
FP0636C-16X	-	-	36"	1/4" 6 Ball Automotive
FP0648C-15X	-	-	48"	1/4" 6 Ball Industrial
-	-	FP0648C-16XTY	48"	1/4" 6 Ball Automotive
FP0624C-58C	-	-	24"	3/8" Industrial
FP0624C-59C	-	-	24"	3/8" Automotive
FP0636C-58C	FP0636C-58CTR	-	36"	3/8" Industrial
FP0648C-58C	-	-	48"	3/8" Industrial
FP0648C-59C	-	-	48"	3/8" Automotive
