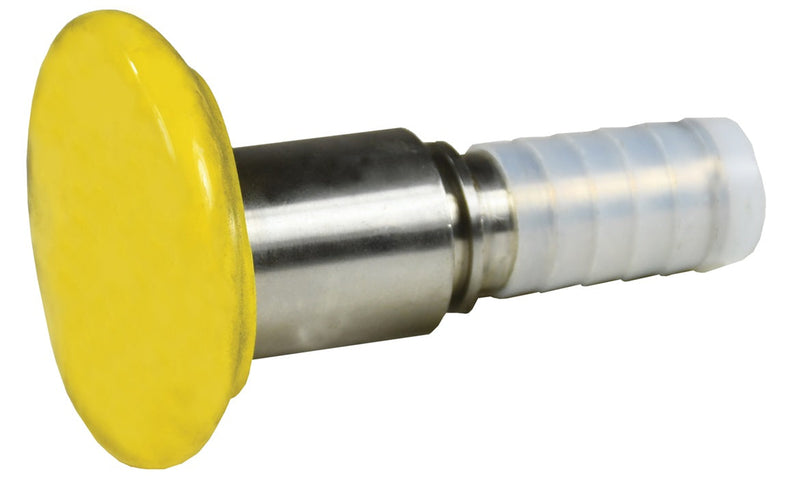

FRRE-T20 by Dixon Valve | True I.D. PTFE Hose Fitting | Flange Retainer | 1-1/4" Size | 316 Stainless Steel PTFE Encapsulated

FRRE-T20 by Dixon Valve | True I.D. PTFE Hose Fitting | Flange Retainer | 1-1/4" Size | 316 Stainless Steel PTFE Encapsulated

Save $292.09 Save $292.09
$730.22
$730.22 - $730.22
$730.22
$438.13
$438.13 - $438.13
$438.13

Dixon Valve
True I.D. PTFE Hose Fitting | Flange Retainer

Suitable for conveying acids, chemicals, foods and pharmaceuticals.

Crimp collars for all True ID fittings are sold separately.
Specifications for Variant SKU: FRRE-T20 Dixon
Series: FRRE-T Series
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Seal Material(s): PTFE
Compatible with the following Series: WOC-T Series  |   BOC-T Series  |   WTB-T Series
Use:
  • For use with True I.D. PTFE hoses.
316 Stainless Steel
Part Number		 316 Stainless Steel
PTFE Encapsulated
Part Number		 Size Crimp Collars for Convoluted Hose Crimp Collars for Smooth Bore Hose
Carbon Steel 304 Stainless Steel Carbon Steel 304 Stainless Steel
FRR-T08 - 1/2" CSC-T08-1 SSC-T08-1 CSC-T08-2 SSC-T08-2
FRR-T12 FRRE-T12 3/4" CSC-T12-1 SSC-T12-1 CSC-T12-2 SSC-T12-2
FRR-T16 - 1" CSC-T16-1 SSC-T16-1 CSC-T16-2 SSC-T16-2
- FRRE-T20 1-1/4" CSC-T20-1 SSC-T20-1 - -
FRR-T24 - 1-1/2" CSC-T24-1 SSC-T24-1 CSC-T24-2 -
FRR-T32 - 2" CSC-T32-1 SSC-T32-1 - -
